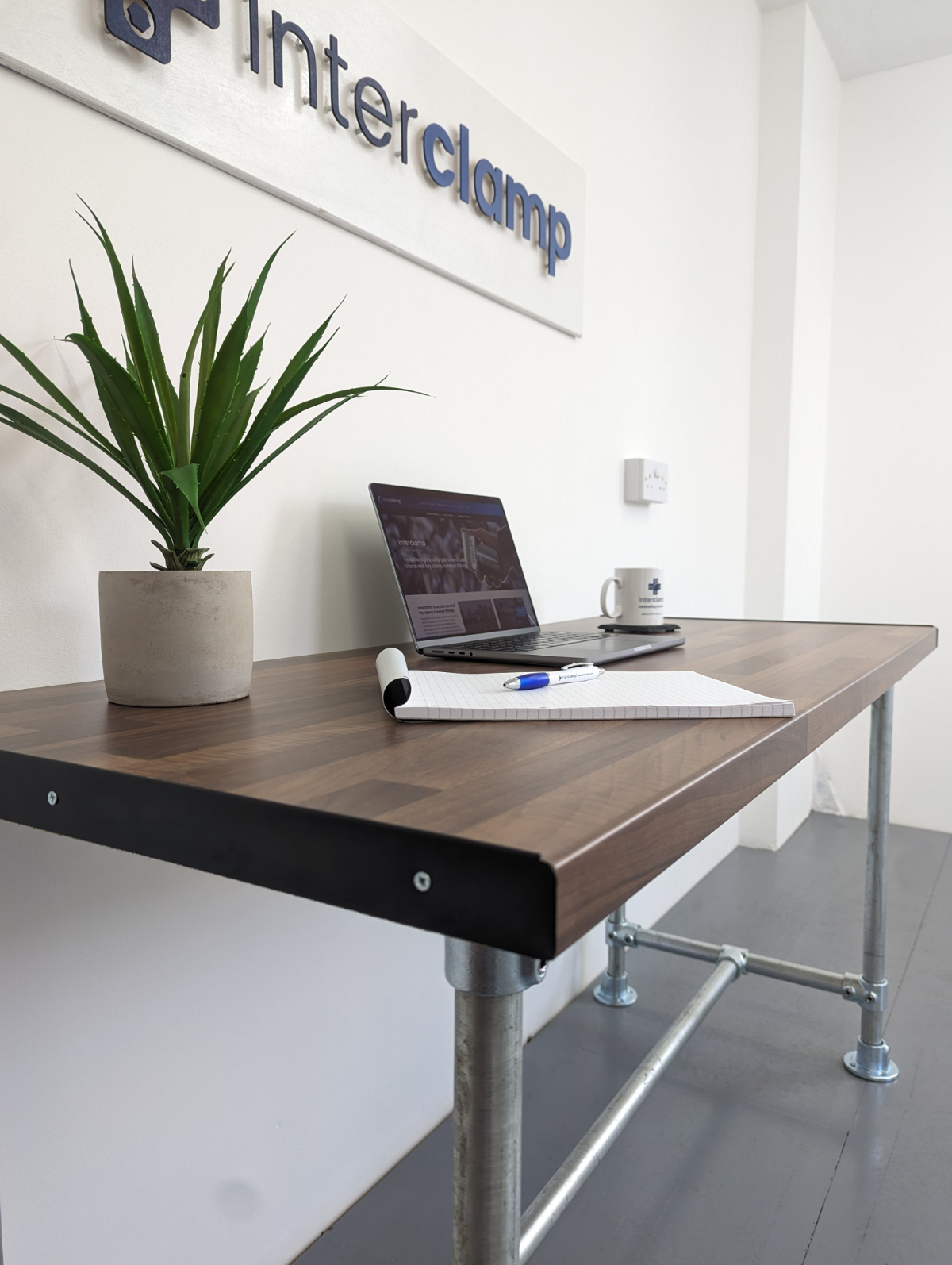

How to construct a key clamp table.
A basic guide to constructing a key clamp table.
This is a basic assembly guide on making a key clamp style table. We have used our Interclamp B34 size, but it could be constructed using a different size. Our C42 & D48 sizes would be perfect for a more heavy duty option. The frame size can be completely customisable to the table top you have available.

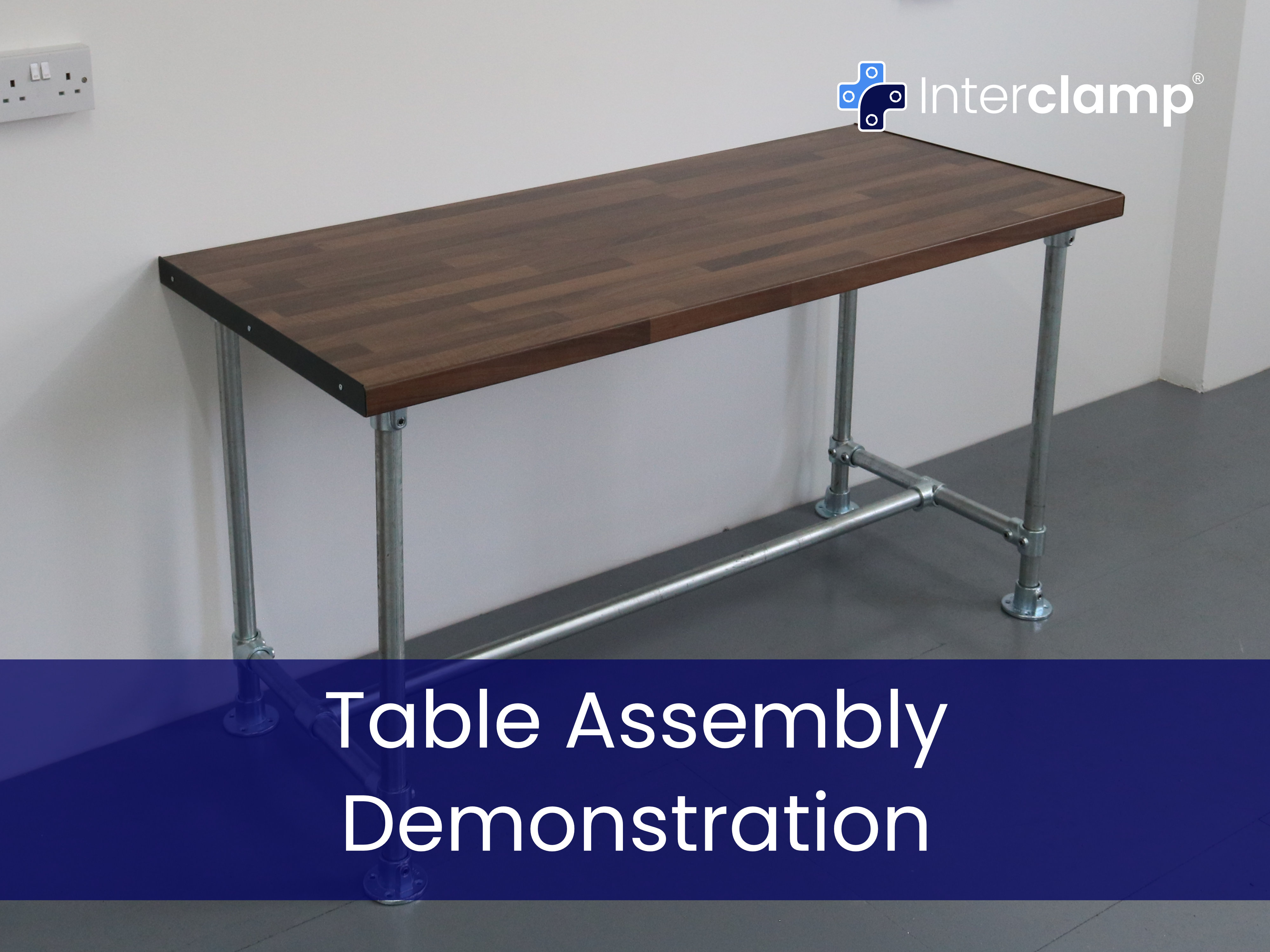

Click the video at the bottom of the page for our video guide on making an key clamp style table.

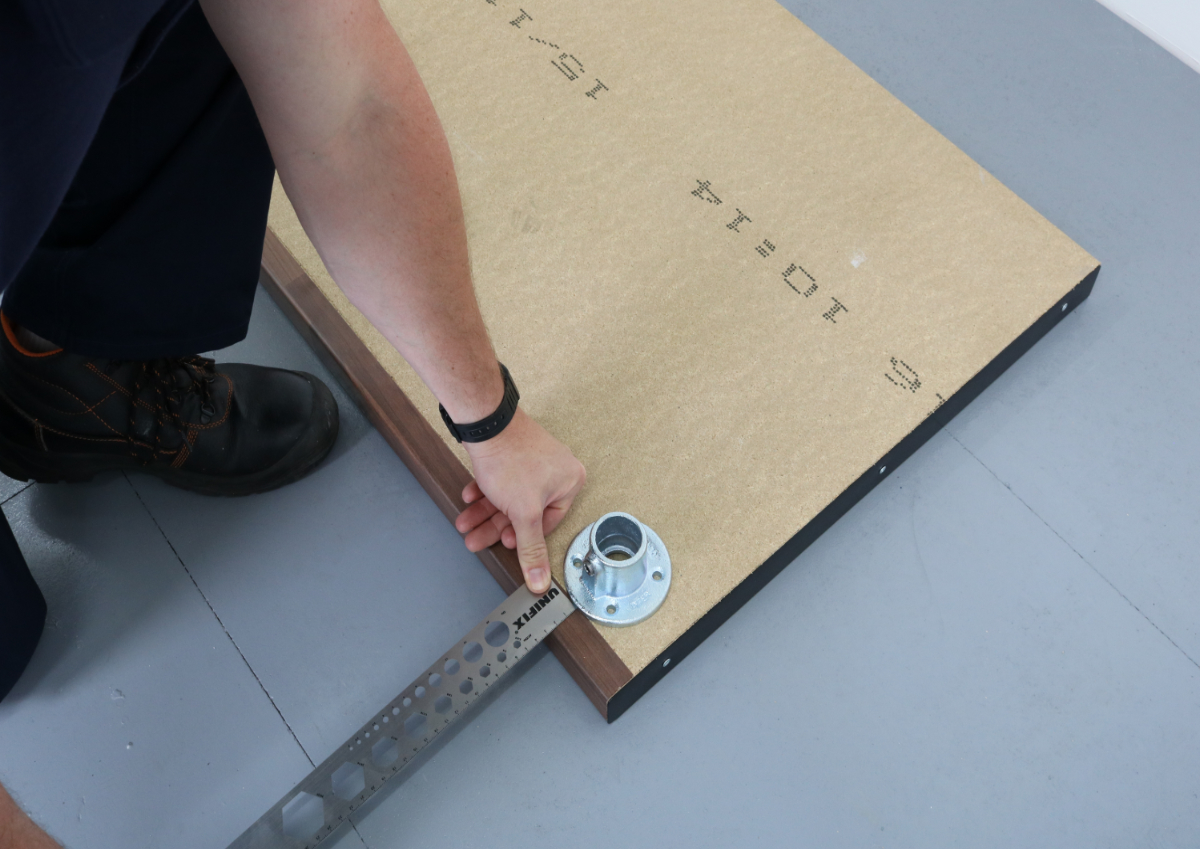

1. Place the 131 in your required position

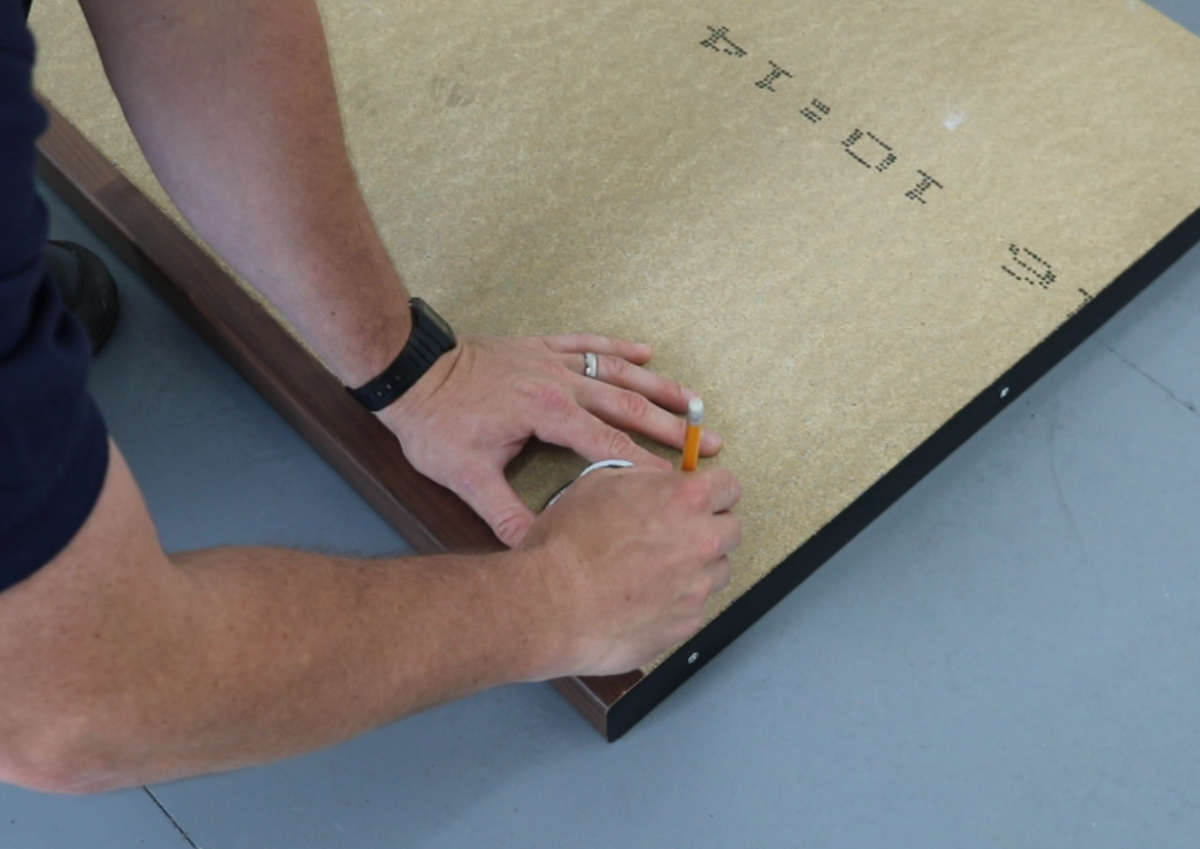

2. Mark the fixing hole position on the 131’s

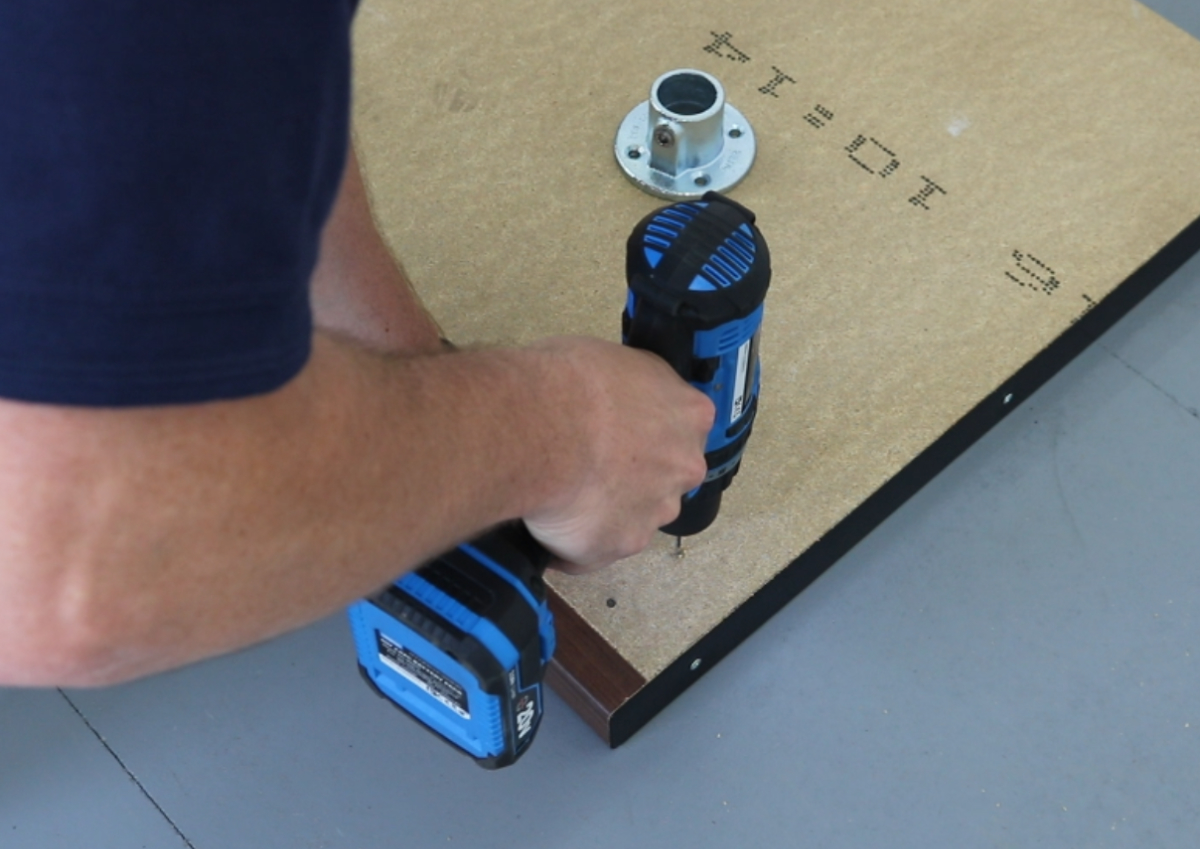

3. Drill a pilot hole before screwing the 131’s down

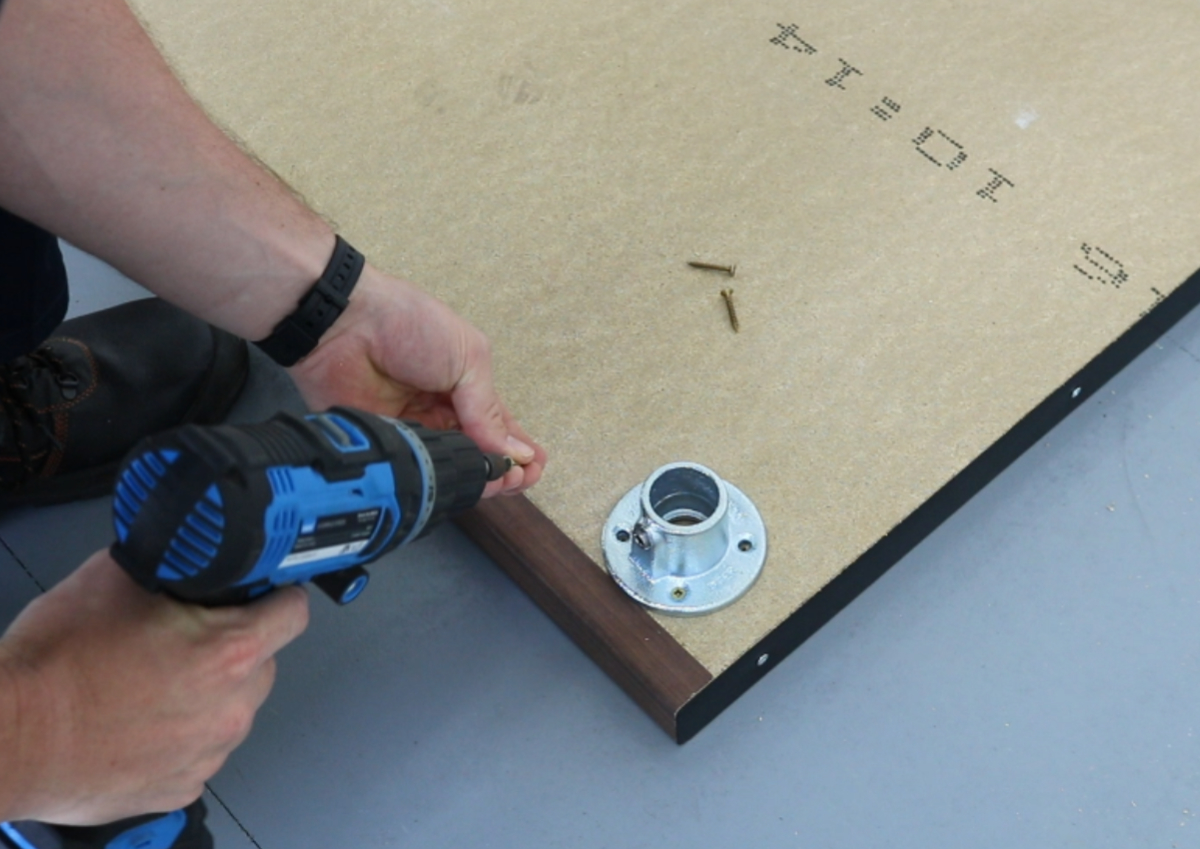

4. Screw the 131’s to the table top

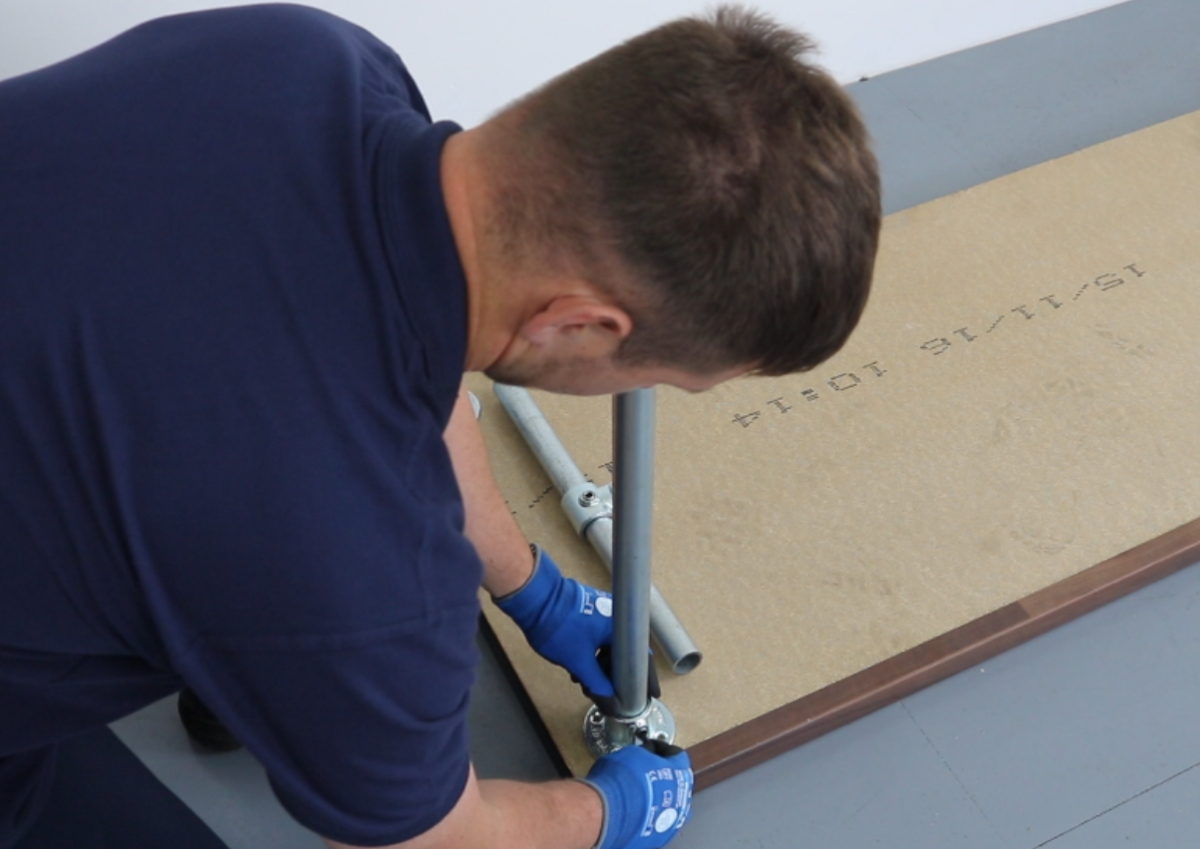

5. Insert and secure legs to the table top

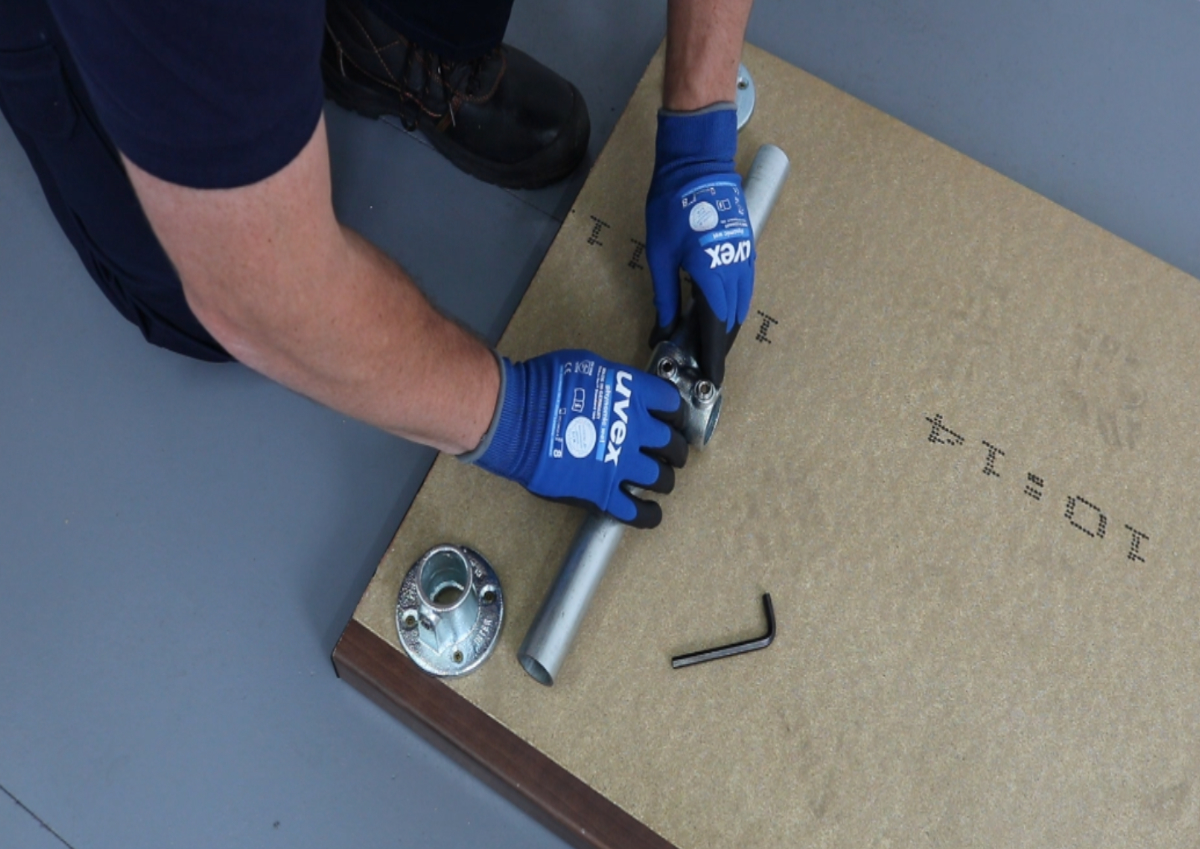

6. Mark the centre on the cross rail and slide on the 101

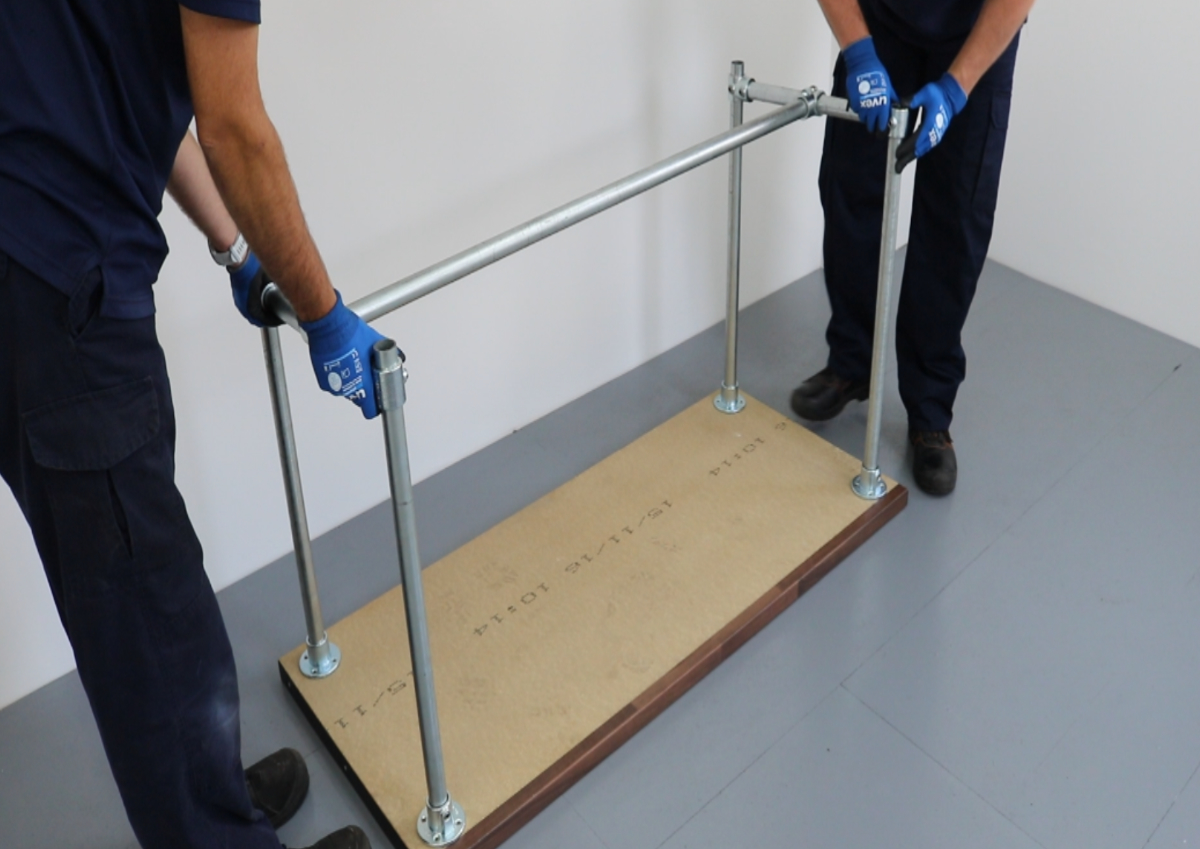

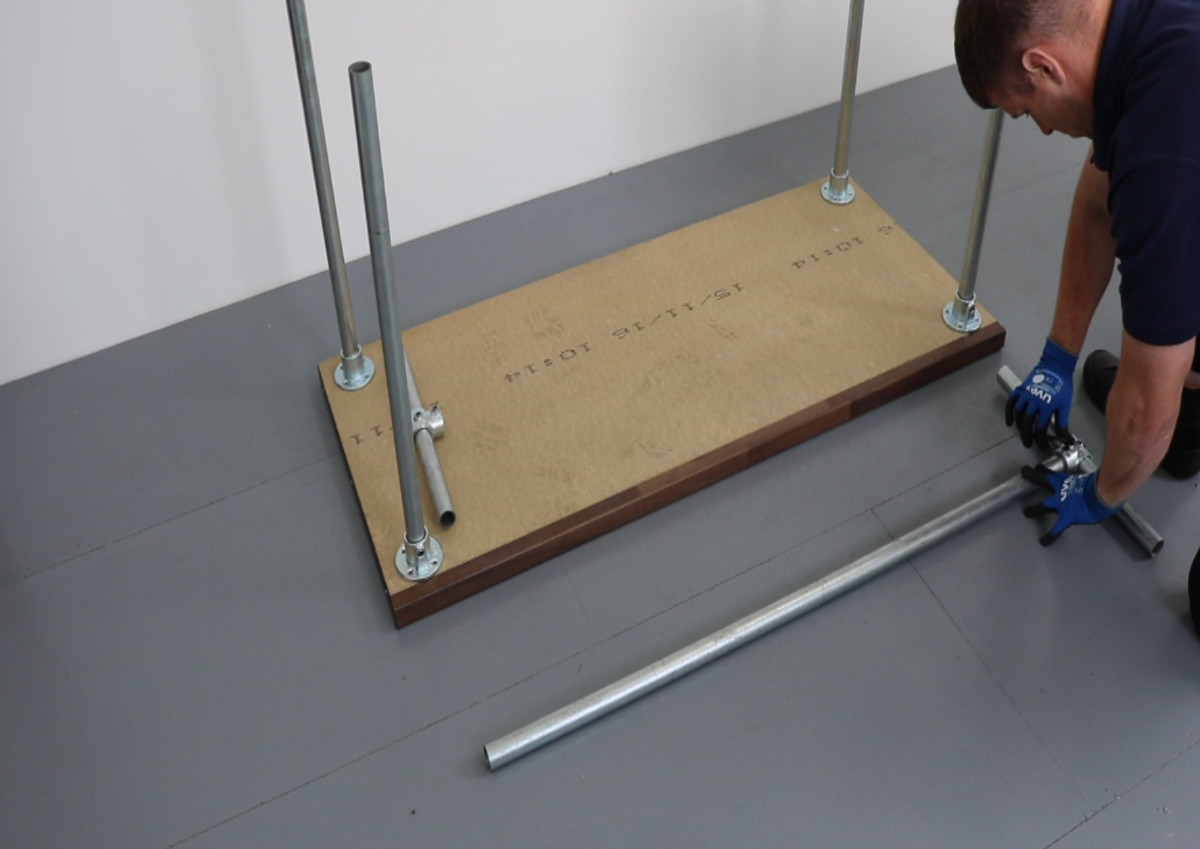

7. Attached the cross rail to the centre rail
8. Mark the desired height for the cross and centre rail

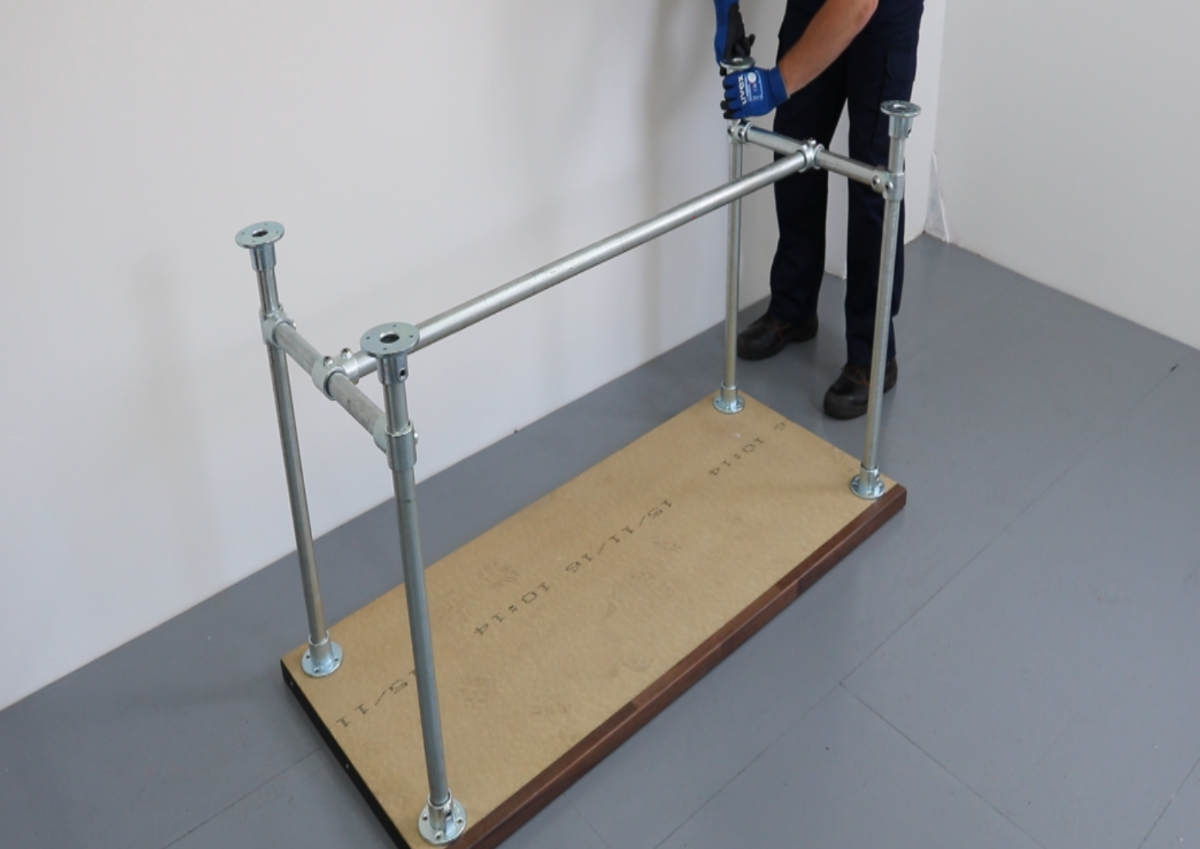

9. Attach the cross and centre rails to the table legs

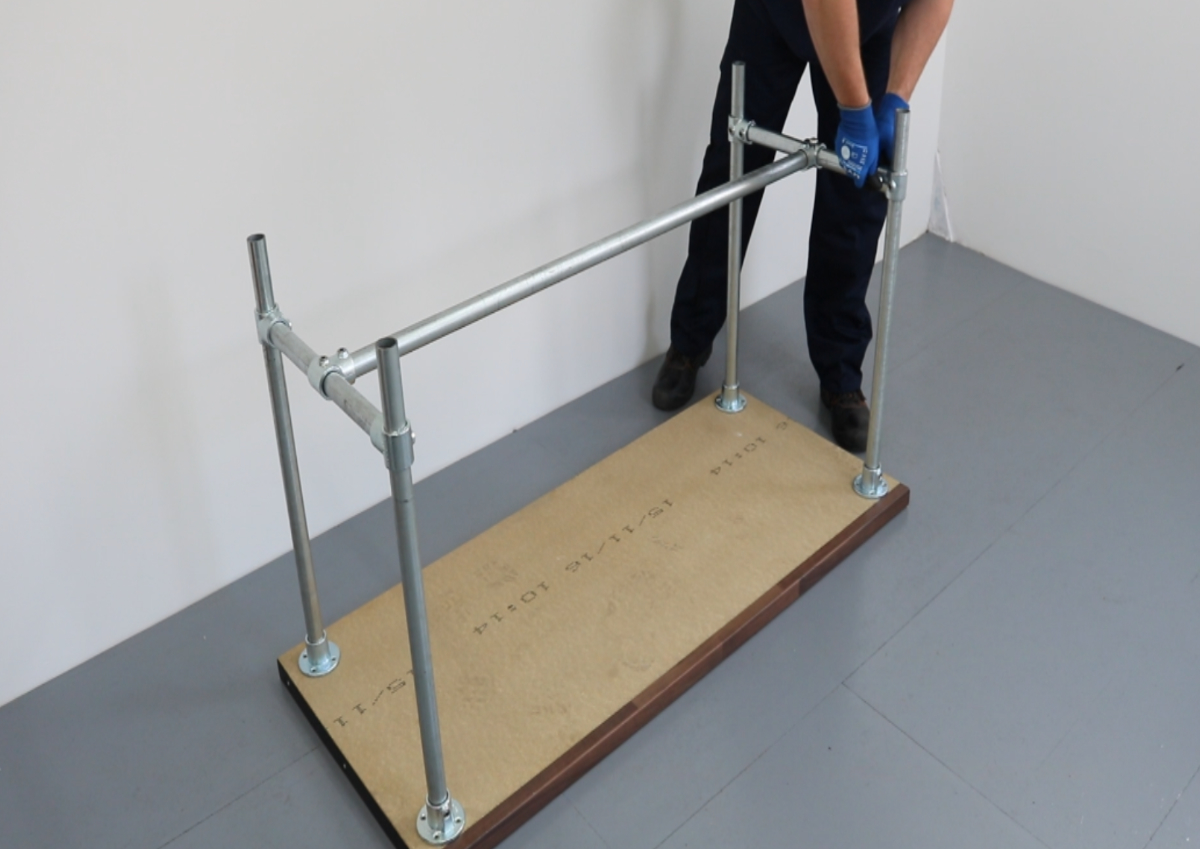

10. Once in position secure the rail in place
11. Place both parts of fitting over the tube
12. Add your chosen accessories and enjoy!
