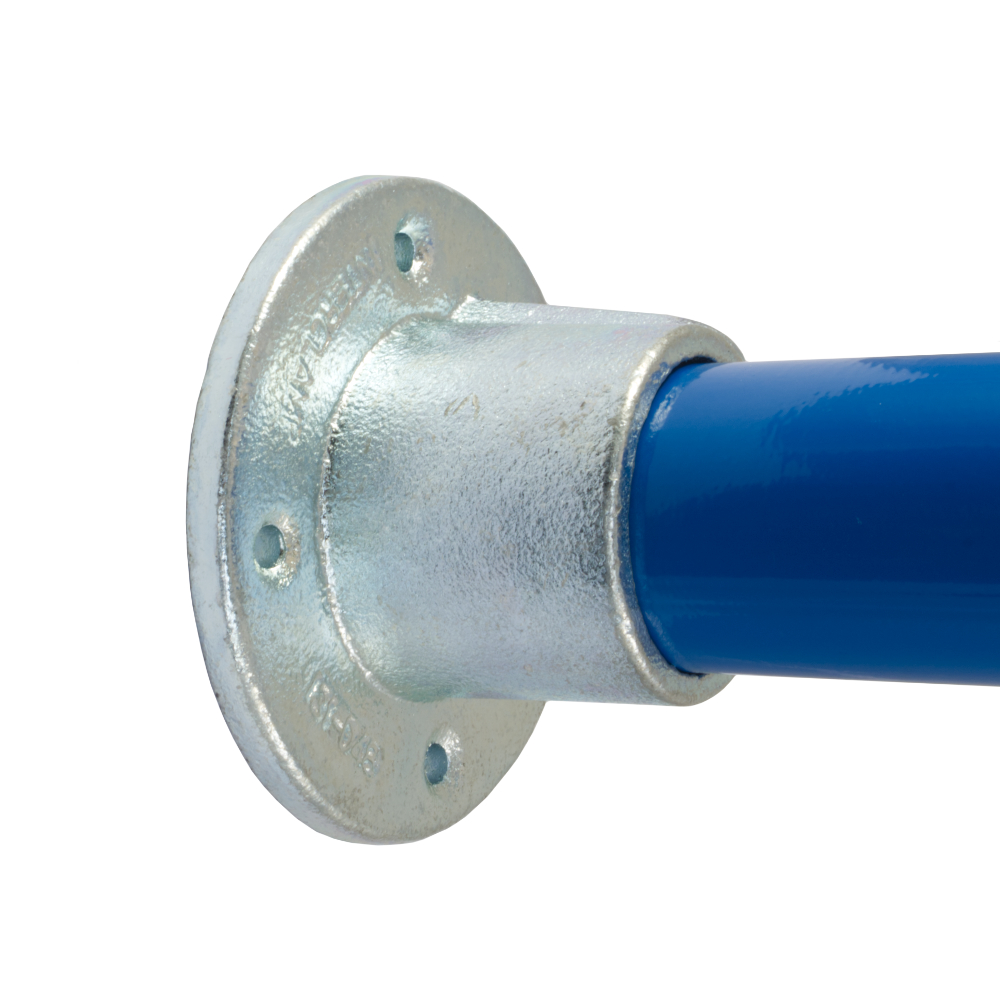

131 - Wall Flange
Positional fixing flange which is often used where rails meet walls on level sites.
Warning: This Interclamp fitting is not recommended as a baseplate to support handrailing, guardrailing, parapets, balustrades or other structures. Please use type 132 as an alternative.
Product Data & Dimensions
| Size | b (mm) | c (mm) | d (mm) | Hole Dia (mm) | Weight (kg) | Box Qty* | Part No |
| A27 | 42 | 83 | 59 | 7 | 0.31 | 98 | 131-A27 |
| B34 | 48 | 89 | 65 | 7 | 0.48 | 70 | 131-B34 |
| C42 | 51 | 102 | 76 | 7 | 0.65 | 48 | 131-C42 |
| D48 | 59 | 114 | 88.5 | 7 | 0.86 | 32 | 131-D48 |
| E60 | 64 | 128 | 97 | 7 | 1.11 | 21 | 131-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
Product Images
