751 - DDA Assist Saddle Fitting

Designed to attach a freestanding handrail to an upright post on a variable angle. The 751 Interclamp Assist fitting comes complete with the 751M saddle, 173F female swivel, bolt and nut unassembled.

The 751 Interclamp fitting is designed for intermediate support of horizontal galvanised handrail tubes where no joining of the tubes are required. They are also used when fitting the 724 Assist handrail end termination to the upright post.

Although the saddles of rivet-on Assist fittings are primarily designed to fit snugly on C42 diameter tubes, they may also accommodate D48 tubes with a slight central gap when fitted. Please note, however, that for relevant UK applications, D48 size handrails do not meet the dimensional requirements of the Disability Discrimination Act (DDA) regulations and Building Regulations Part M:2004.

Product Data & Dimensions

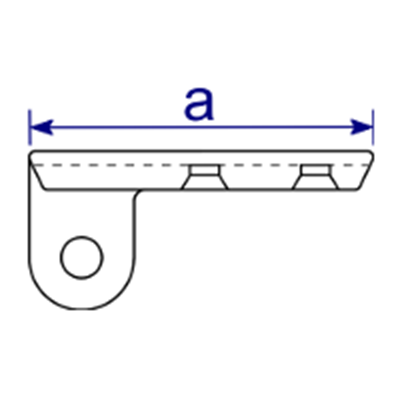

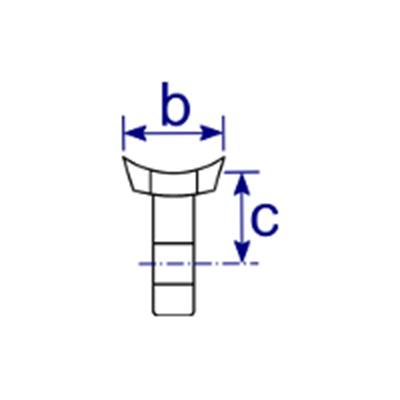

Size a (mm) b (mm) c (mm) Weight (kg) Box Qty*
  C42   87   26   31   0.59   50
  C42/D48   -   -   -   0.66   50

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
