753 - DDA Assist Offset Saddle Fitting
Designed to attach a freestanding handrail to an upright post on a variable angle.
The 753 Interclamp fitting is designed for intermediate support of horizontal galvanised handrail tubes where no joining of the tubes are required. They are also used when fitting the 724 Assist handrail end termination to the upright post.
Although the saddles of rivet-on Assist fittings are primarily designed to fit snugly on C42 diameter tubes, they may also accommodate D48 tubes with a slight central gap when fitted.

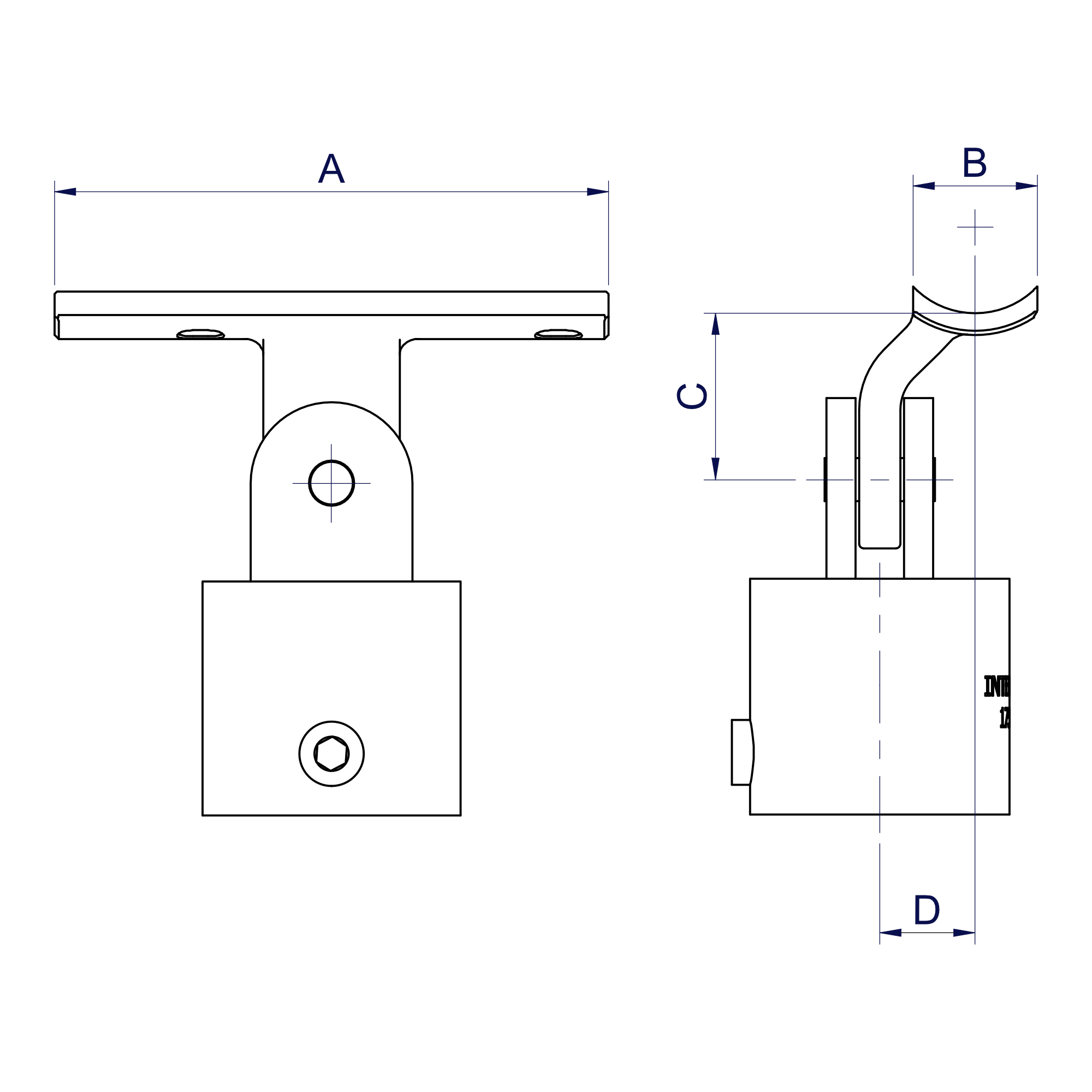

Product Data & Dimensions
| Size | a (mm) | b (mm) | c (mm) | d (mm) | Weight (kg) | Box Qty* |
| C42 | 130 | 29 | 39 | 22 | 0.743 | 40 |
| D48 | 130 | 29 | 39 | 22 | 0.837 | 35 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
