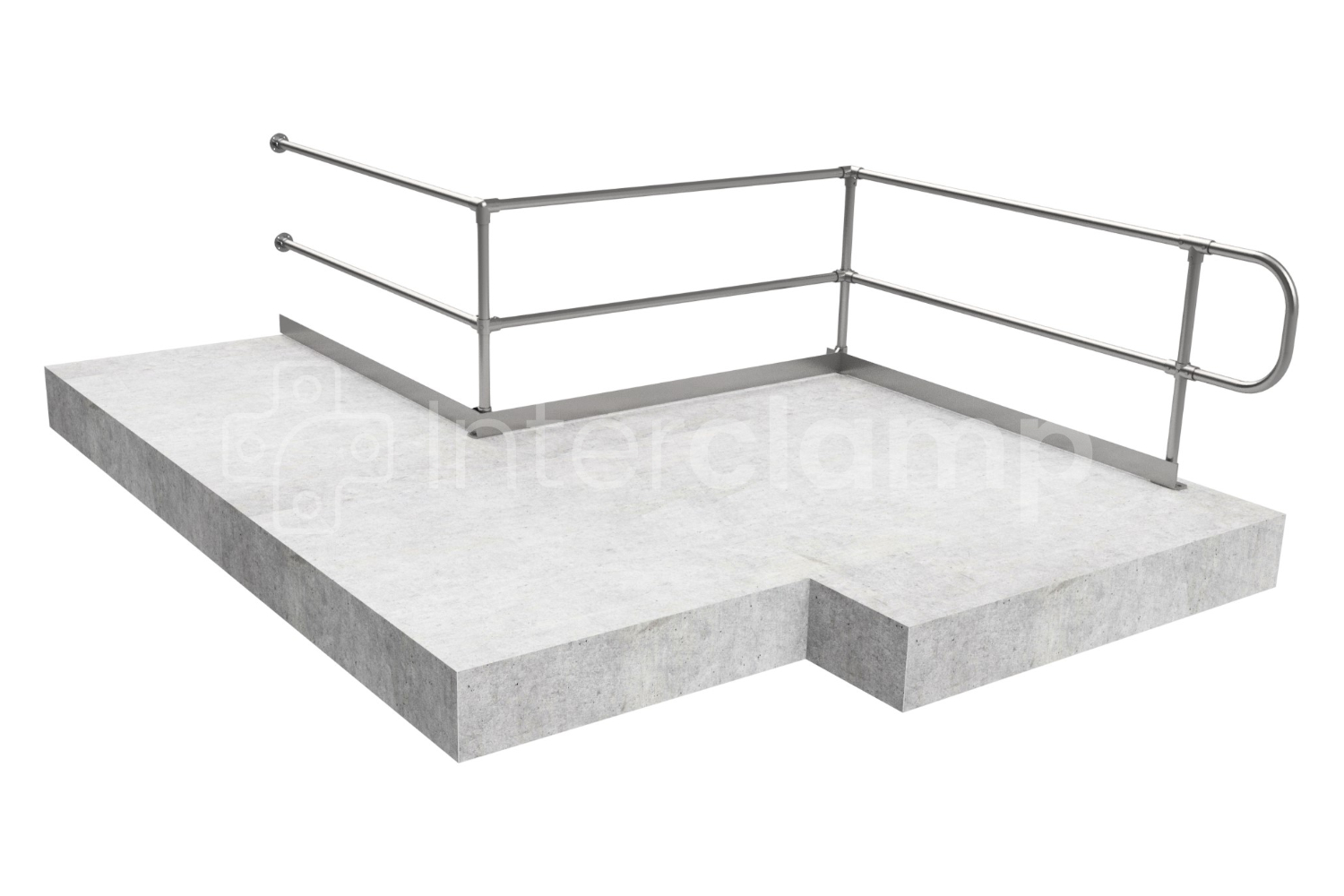

4030 - Standard Safety Post - Two Rail With Kickplate
Interclamp 4030 is a two rail modular handrail system with kickplate, commonly used for industrial handrailing, guardrail, zone segregation and fall protection on walkways, ramps and fixed platforms.
The Interclamp 4030 Standard Safety Post system has been designed to comply with certain specific applications of Australian Standard AS 1657:2018.
The Interclamp system may be used to construct barriers, parapets, balustrades and railings conforming with the requirements of AS 1170, subject to correct choice of materials, design of the structure and dependent on the type of occupancy defined by Table 3.3 of the standard.

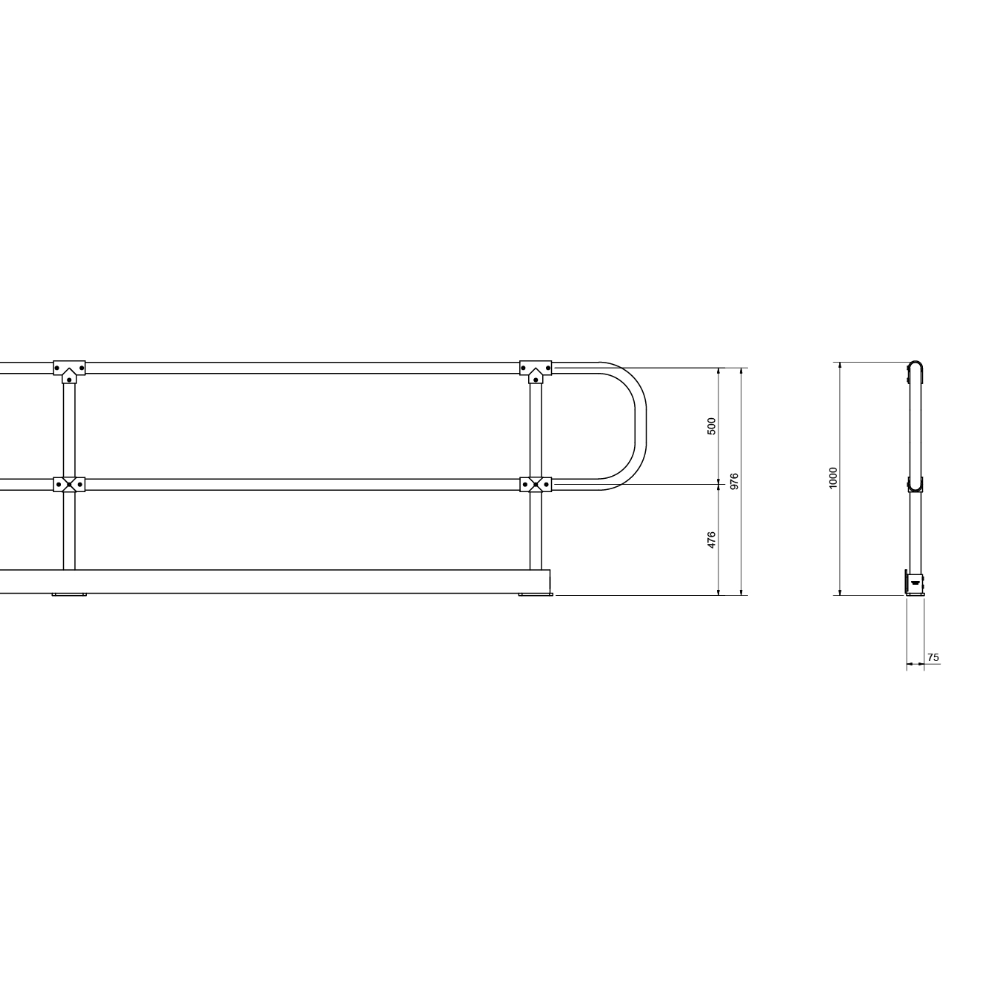

Product Data & Dimensions
| Size | Post Size | Mid Rail Size | Top Rail Size |
| C42 | C42 | C42 | C42 |
| D48 | D48 | D48 | D48 |
Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
Benefits
- Genuine Interclamp fittings
- Modular and versatile
- Simple to specify
- Fully tested compliance
- Easy to order
- Rapid to install with the minimum of tools
- No welding required
- Reduced time and transportation costs compared with pre-fabricated structures
Typical Applications
- Pedestrian walkways
- Industrial handrailing
- Personnel safety
- Fall protection
- Warehouses
- Loading bays
- Machinery guard-railing
- Zone segregation
- Mezzanine floors
- Ramps
