5140 - DDA Assist Offset Handrail - Top and Mid Rail

Interclamp 5140 is a two rail offset modular DDA Assist handrail system, commonly used for general hand railing, wheelchair access, pedestrian walkways, stairs, and easy access.

The Interclamp 5140 DDA system has been designed to comply with Australian standard AS 1428.1:2009.

The Interclamp system may be used to construct barriers, parapets, balustrades and railings conforming with the requirements of AS 1170, subject to correct choice of materials, design of the structure and dependent on the type of occupancy defined by Table 3.3 of the standard.





Range Print < Prev Next >

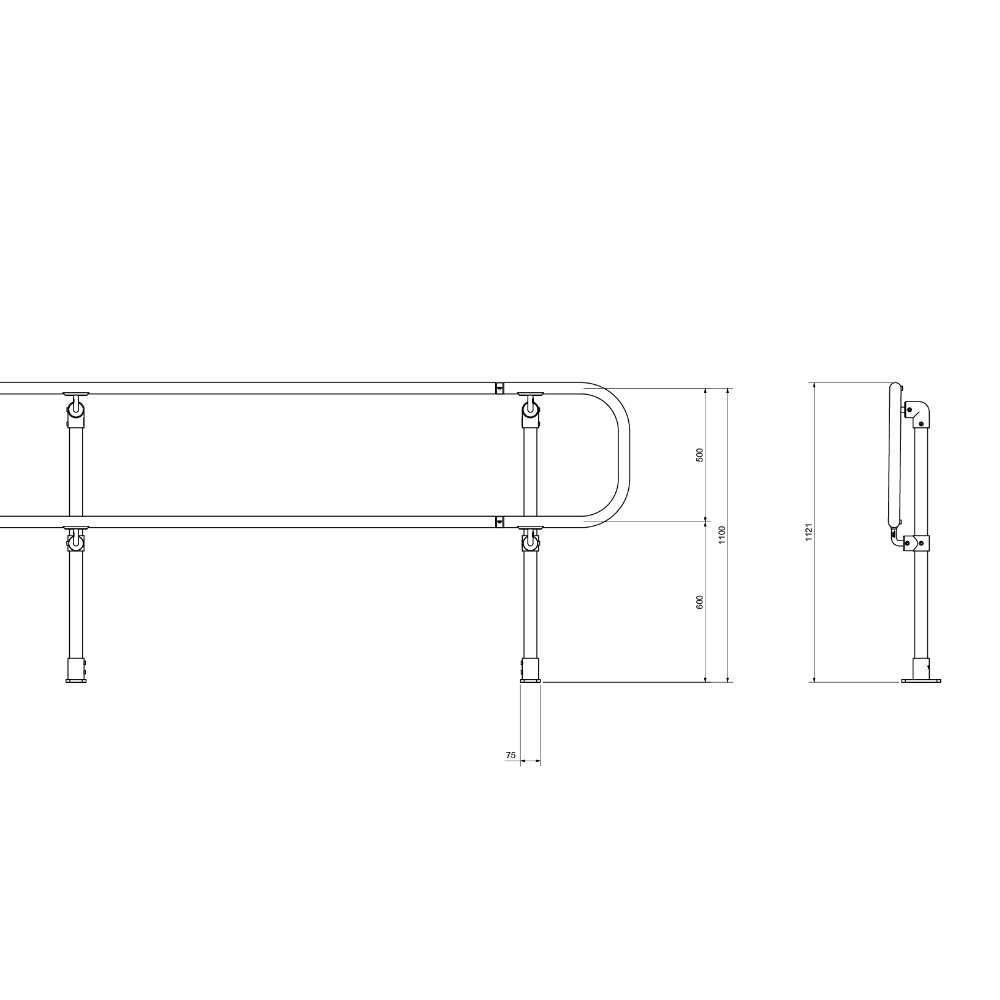

Product Data & Dimensions

Size Post Size Mid Rail Size Top Rail Size
  C42   C42   C42   C42
  D48/C42

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Benefits

  • Smooth, continuous, in-line disability handrail
  • Helps meet DDA compliance
  • Easy accommodation of slopes and access ramps
  • Genuine Interclamp fittings
  • Modular and versatile
  • Simple to specify
  • Easy to order
  • Rapid to install with the minimum of tools
  • No welding required
  • Reduced time and transportation costs compared with pre-fabricated structures

Typical Applications

  • Wheelchair access
  • Pedestrian walkways
  • General handrailing
  • Stairs

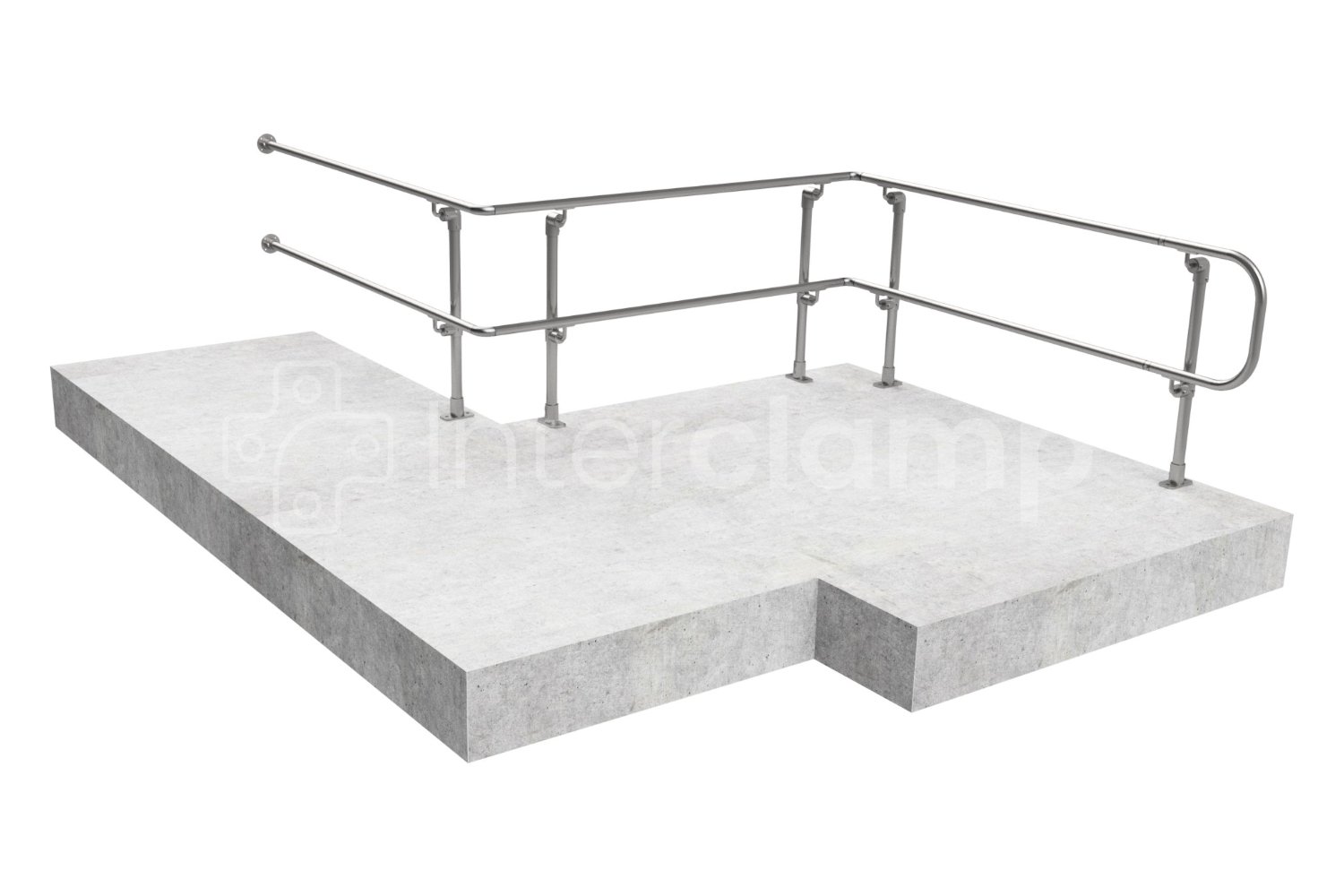

Product Images
