101R - Reducing Short Tee
The Interclamp® 101 Short Tee Reducing connector is used to join tubes of unequal size on level sites. The tube clamp cannot be used where the through tube (horizontal in photo) has to be joined within the fitting. The key clamp can be used for handrails, barriers, guardrails, fencing, shopfitting, racking, exhibition stands and so much more.
Product Data & Dimensions

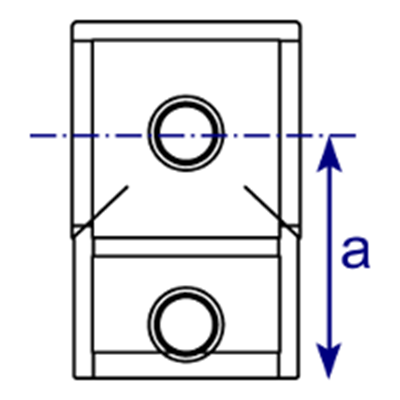

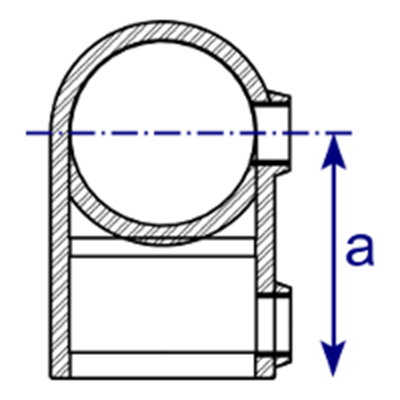

| Size | a (mm) | X | Y | Weight (kg) | Box Qty* | Part No |
| B34/C42 | 56 | B34 | C42 | 0.45 | 50 | 101-B34/C42 |
| C42/B34 | 57 | C42 | B34 | 0.40 | 50 | 101-C42/B34 |

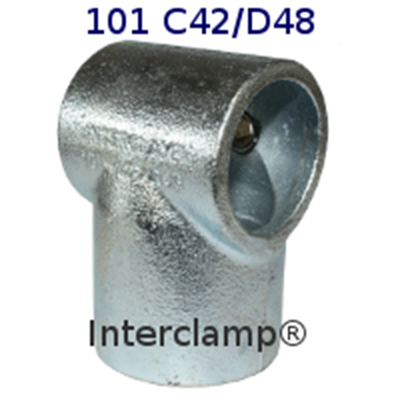

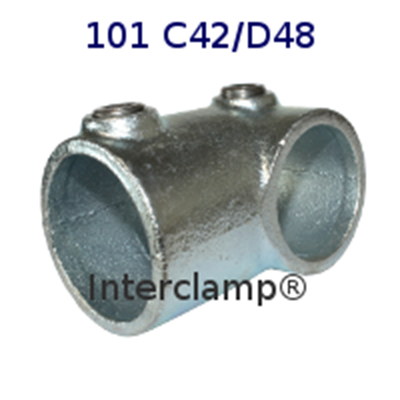

| C42/D48 | 68 | C42 | D48 | 0.58 | 42 | 101-C42/D48 |
| D48/B34 | 64 | D48 | B34 | 0.42 | 50 | 101-D48/B34 |
| D48/C42 | 63 | D48 | C42 | 0.51 | 48 | 101-D48/C42 |

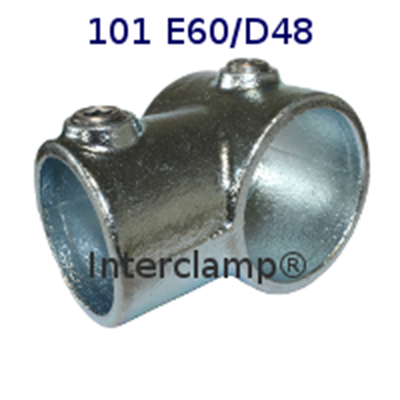

| E60/D48 | 74 | E60 | D48 | 0.69 | 32 | 101-E60/D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
