124 - Variable Elbow (15° - 60°)

124 - Variable Elbow (15° - 60°)

Variable 15° to 60° angle joint, often used to join staircase top rail to end uprights.

Range Print < Previous Next >

Product Data & Dimensions

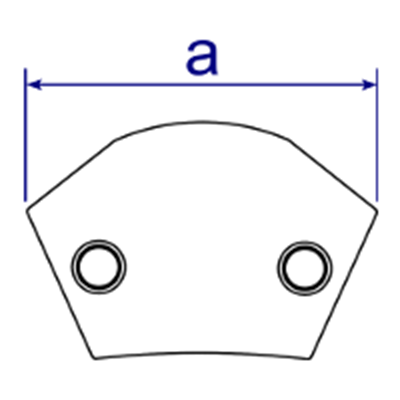

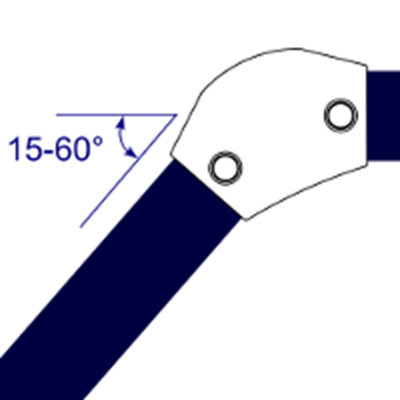

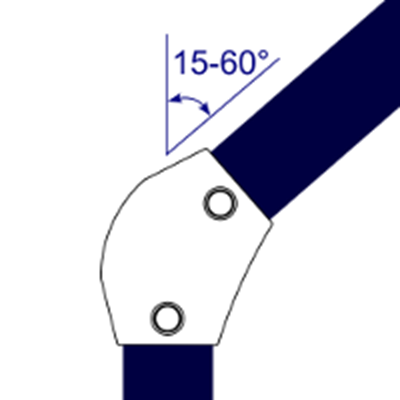

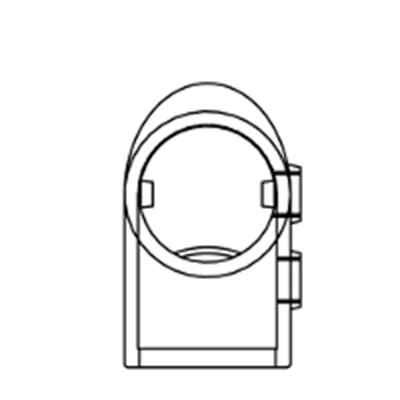

Dimensions Image 1 - 124 - Variable Elbow (15° - 60°)
Dimensions Image 2 - 124 - Variable Elbow (15° - 60°)
Dimensions Image 3 - 124 - Variable Elbow (15° - 60°)
Dimensions Image 4 - 124 - Variable Elbow (15° - 60°)
Size a (mm) Weight (Kg) Box Qty* GTIN / EAN No
  B34   91   0.40   60   5060511020336
  C42   110   0.64   39   5060511020343
  D48   122   0.67   30   5060511020350

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

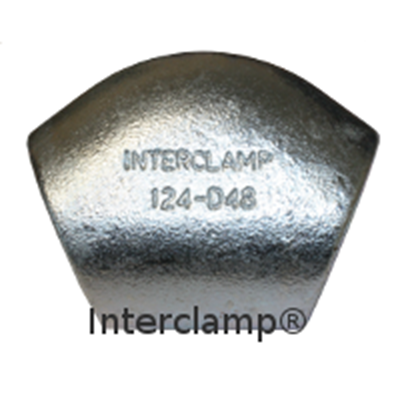

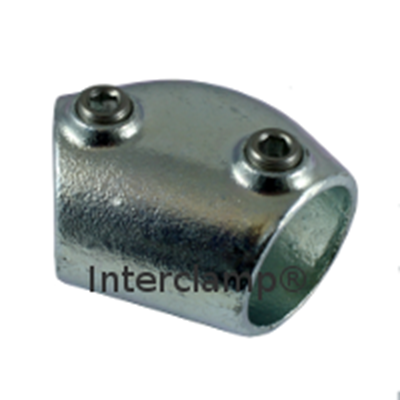

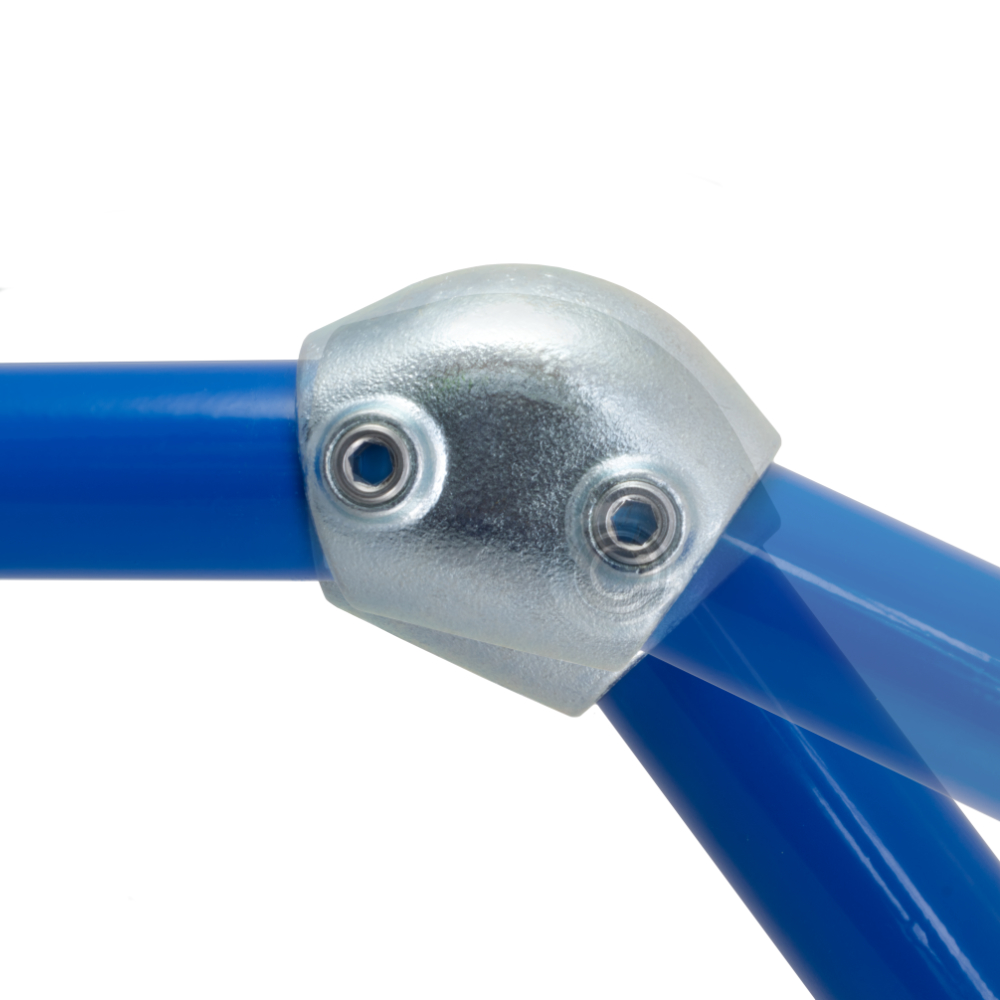

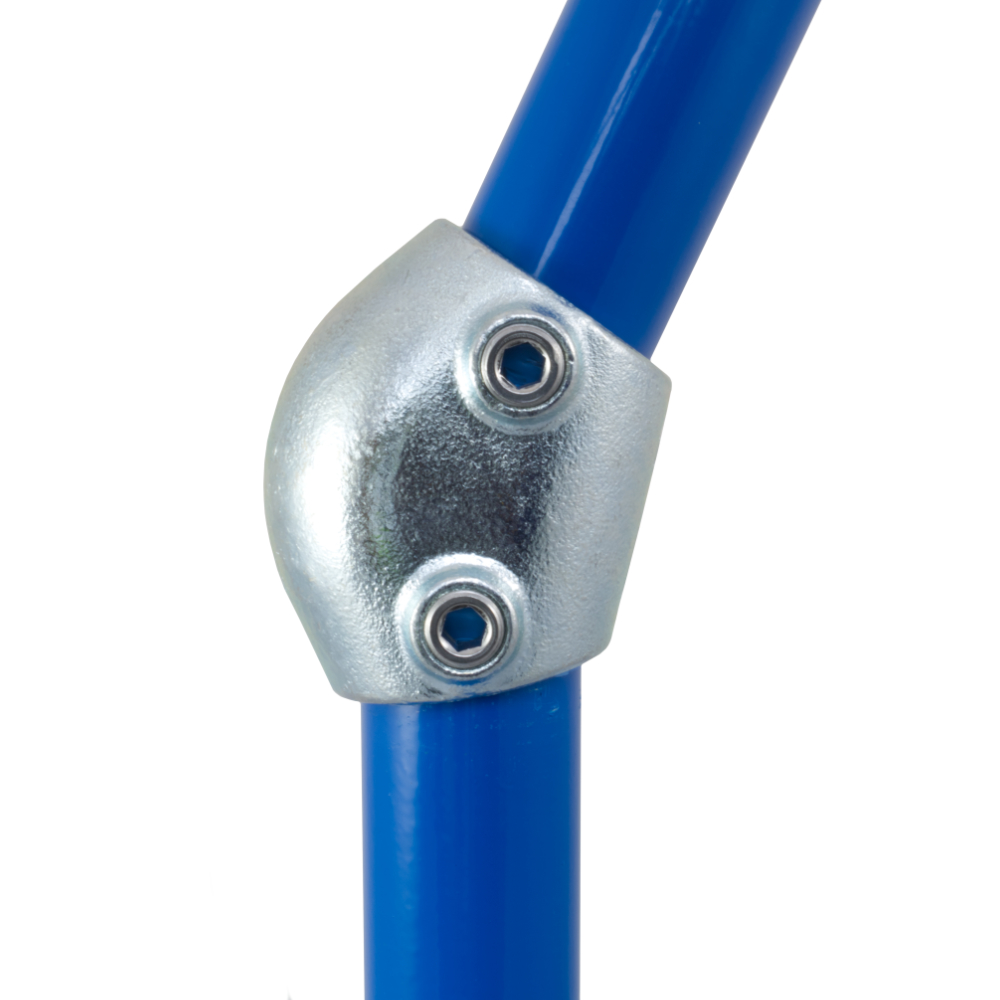

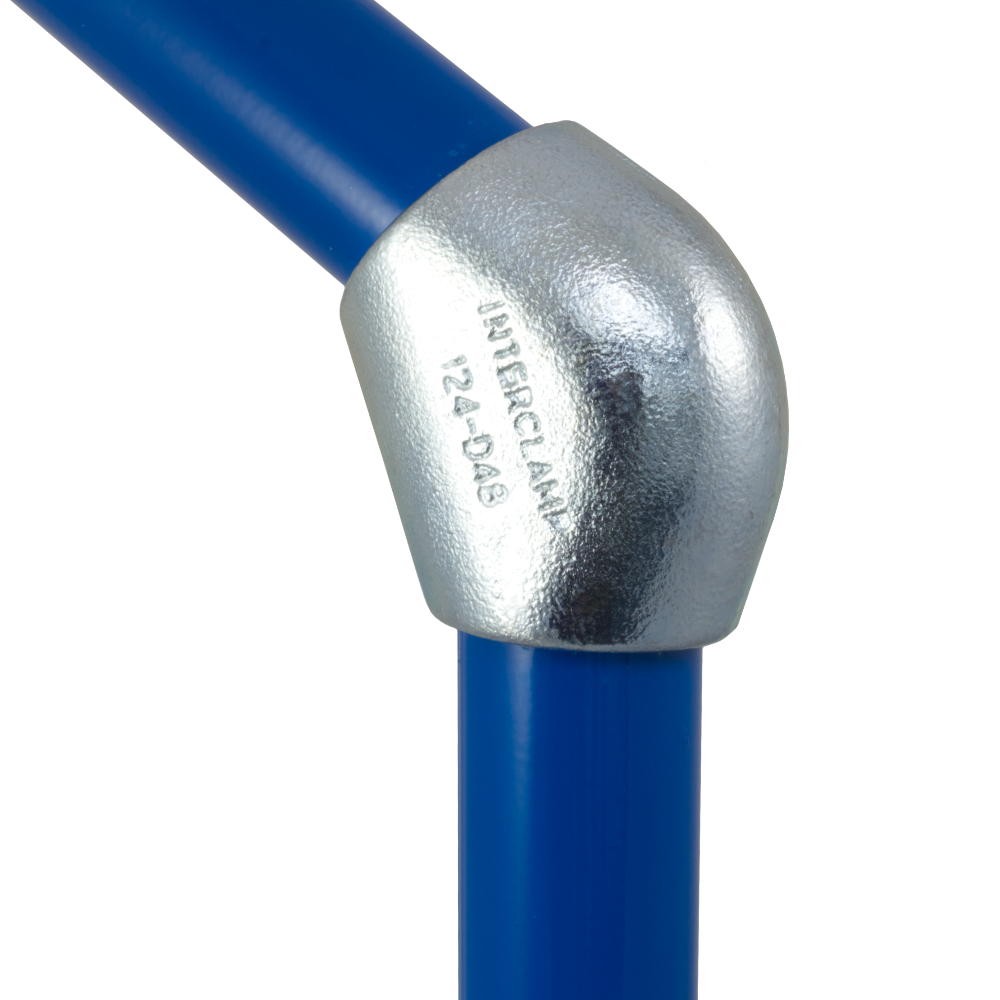

Product Images 1 - 124 - Variable Elbow (15° - 60°)
Product Images 2 - 124 - Variable Elbow (15° - 60°)
