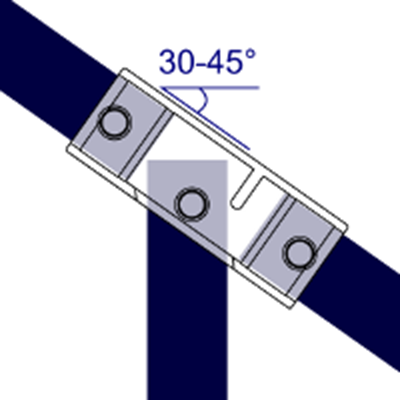

127 - Adjustable Long Tee (30° - 45°)

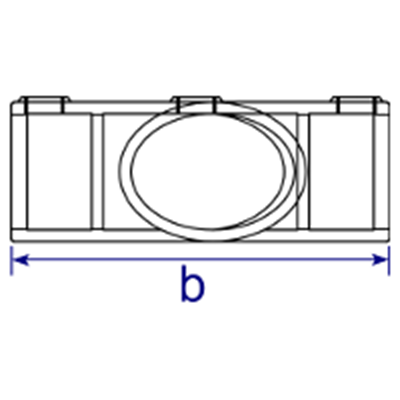

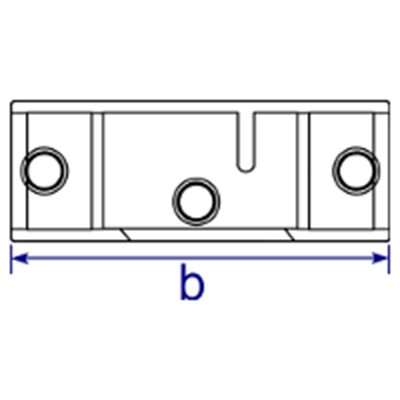

Product Data & Dimensions
| Size | b (mm) | Weight (kg) | Box Qty* | Part No |
| B34 | 118 | 0.59 | 58 | 127-B34 |
| C42 | 147 | 0.89 | 35 | 127-C42 |
| D48 | 165 | 1.08 | 23 | 127-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

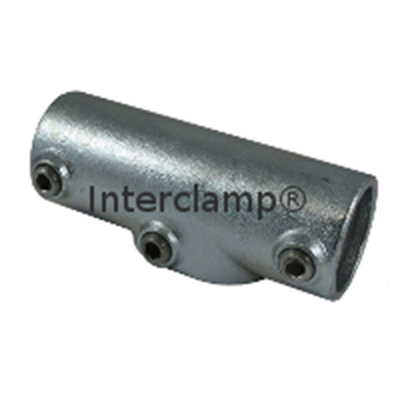

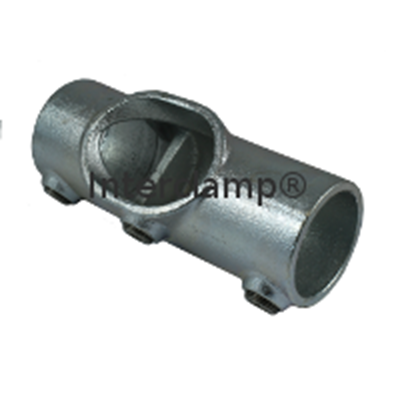

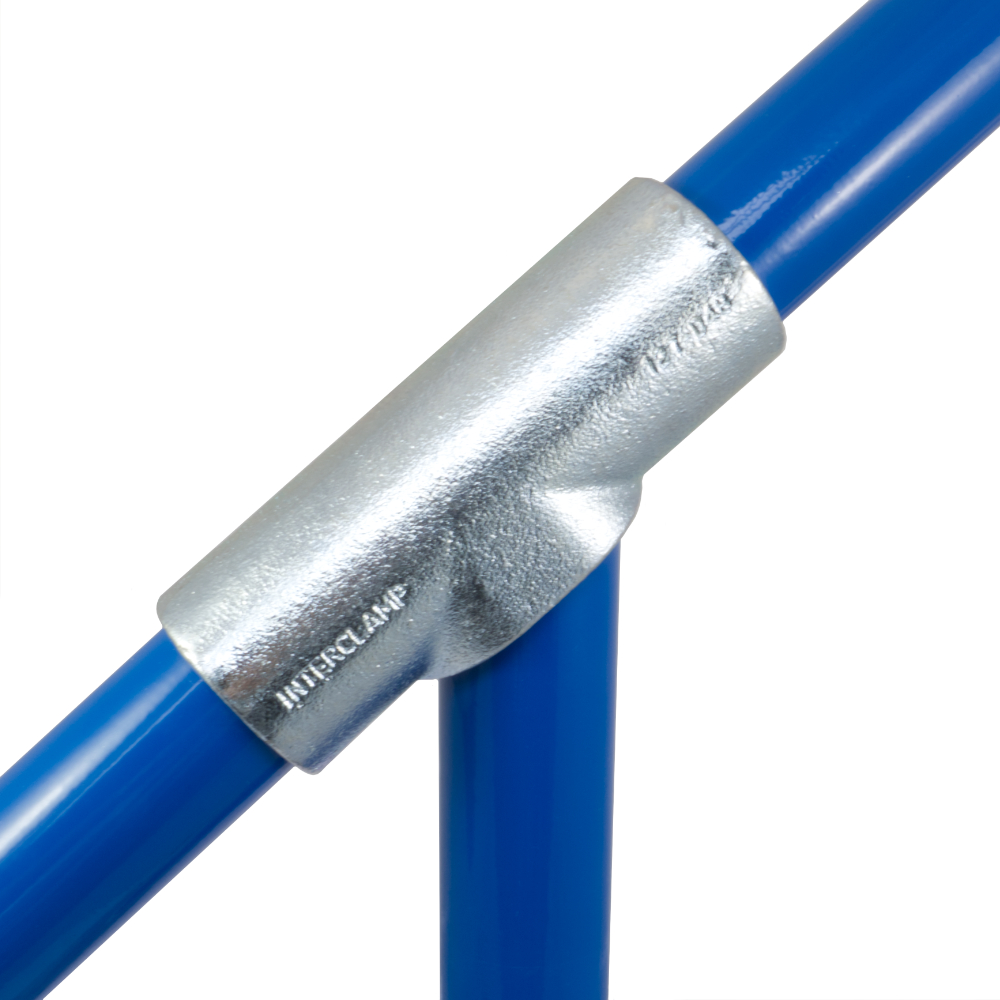

Product Images
