132 - Railing Base Flange

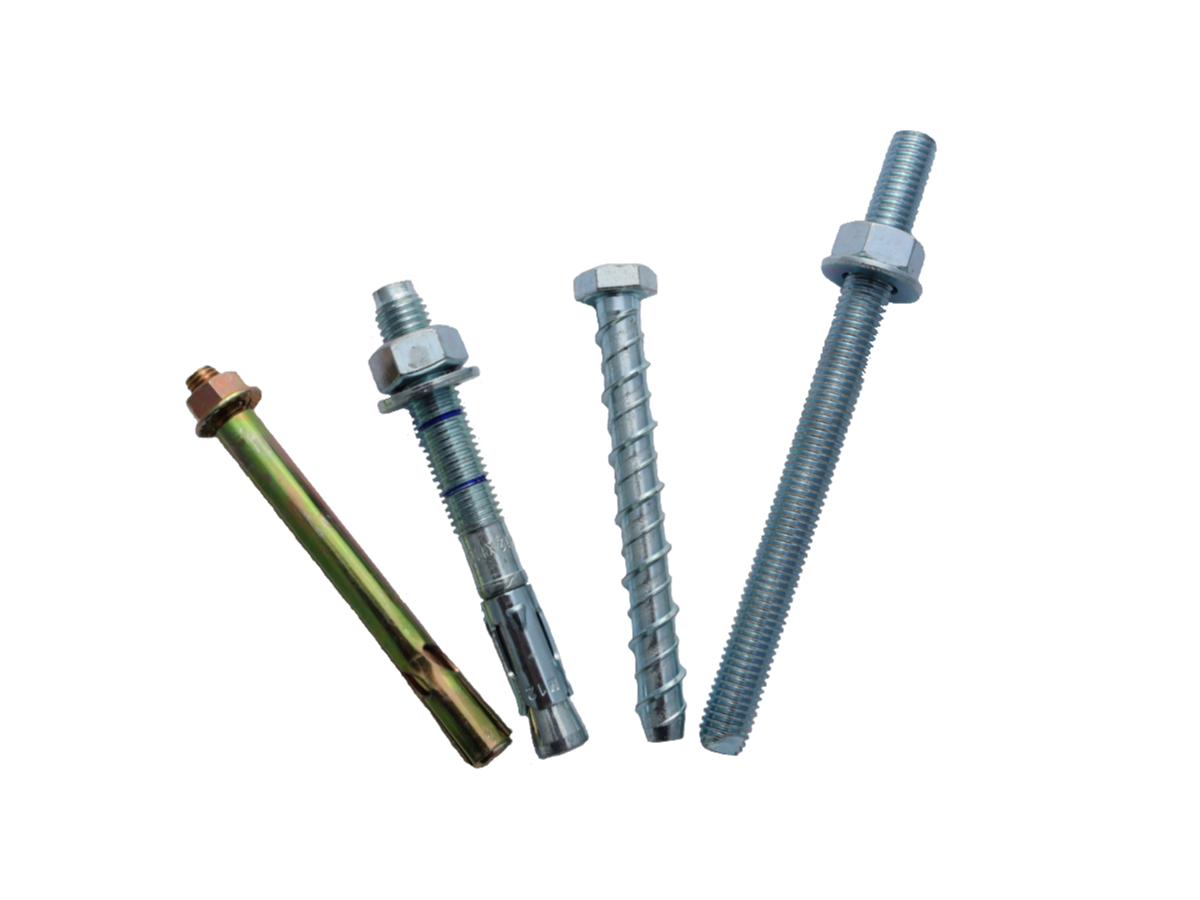

Base flange, usually used for uprights on level sites. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. Type 132-D48 is designed to meet the dimensional requirements for parapets as defined by BS7818:1995 (Pedestrian Restraint Systems in Metal).
Warning: To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.
Product Data & Dimensions

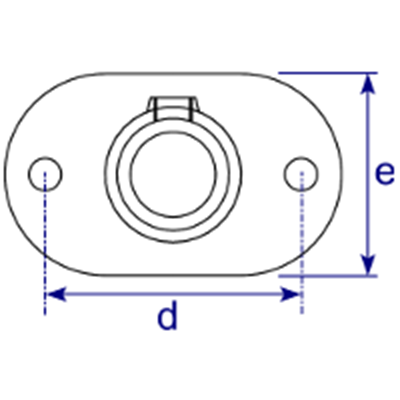

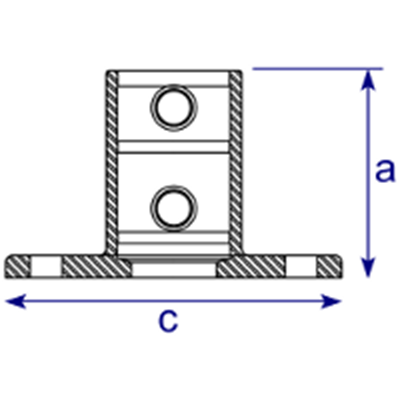

| Size | a (mm) | c (mm) | d (mm) | e (mm) | Hole Dia (mm) | Weight (kg) | Box Qty* | Part No |
| A27 | 60 | 105 | 76 | 52 | 11 | 0.39 | 80 | 132-A27 |
| B34 | 71 | 127 | 89 | 62 | 15 | 0.65 | 45 | 132-B34 |
| C42 | 84 | 139 | 101 | 72 | 15 | 0.88 | 30 | 132-C42 |
| D48 | 89 | 152 | 114 | 86 | 15 | 1.17 | 23 | 132-D48 |
| E60 | 104 | 165 | 127 | 96 | 18 | 1.59 | 17 | 132-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

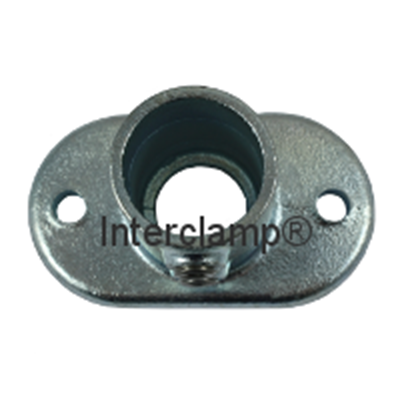

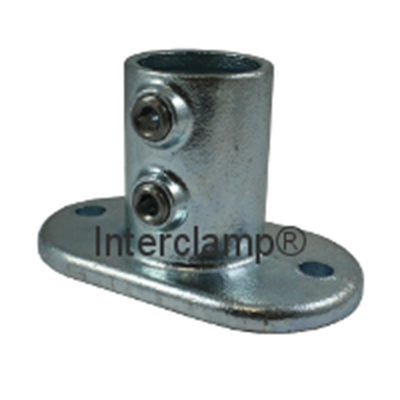

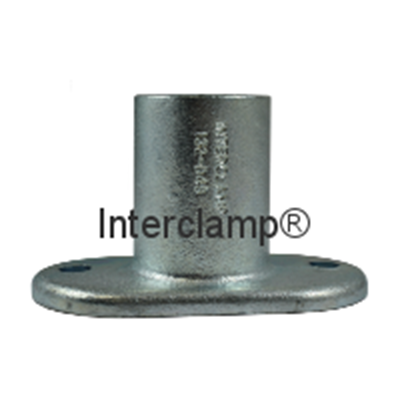

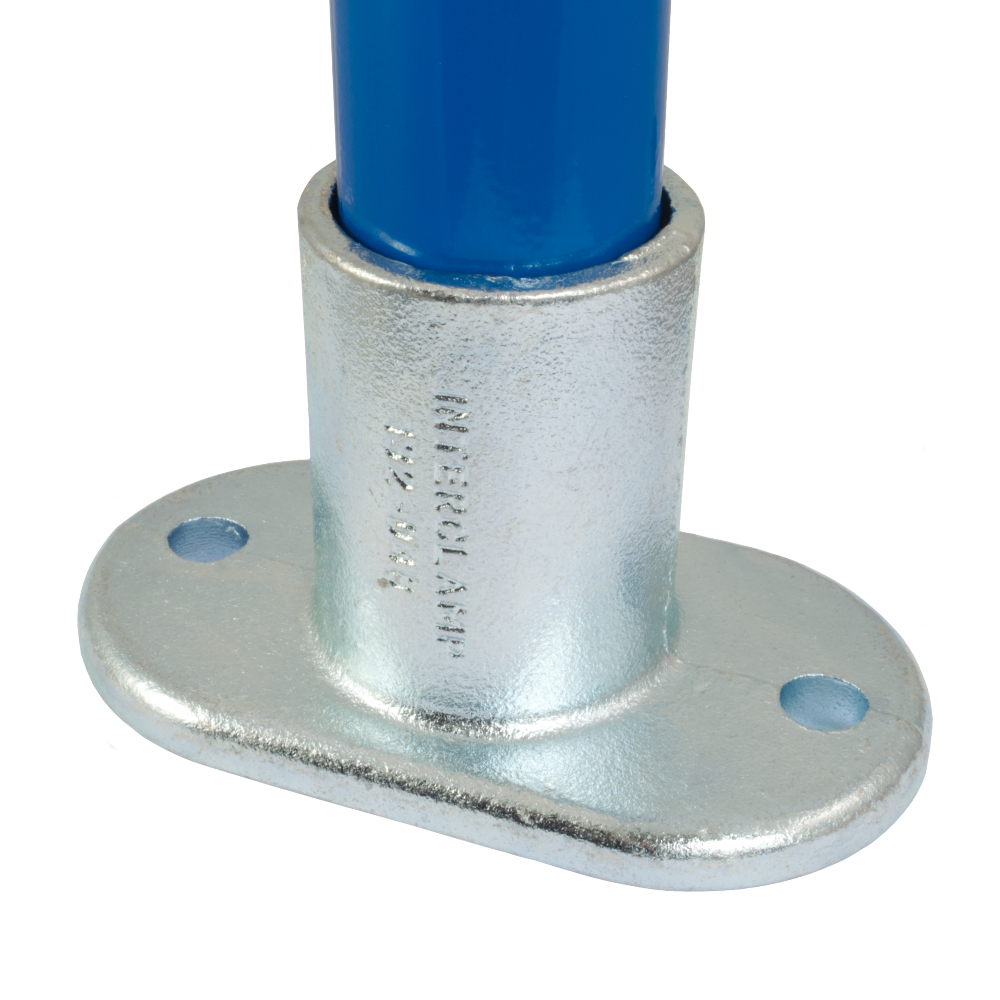

Product Images
