148 - Short Swivel Tee

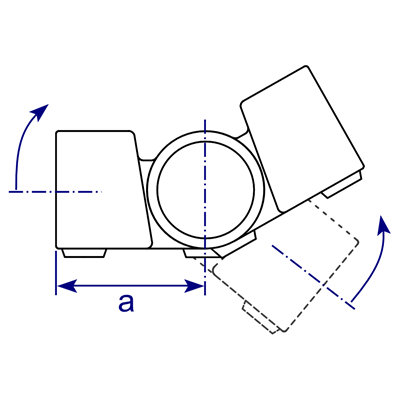

Typically used on level guardrail to create a corner at other than 90° with an upright. Creates angles on plan between 85° & 235°. When using the 148 fitting the top of the tube needs to be closed using a 133 end cap. A versatile fitting, usually used in pairs.

Although the photo shows two fittings, this item is sold and priced individually. The through tube (vertical in photo) cannot be joined within the fitting.

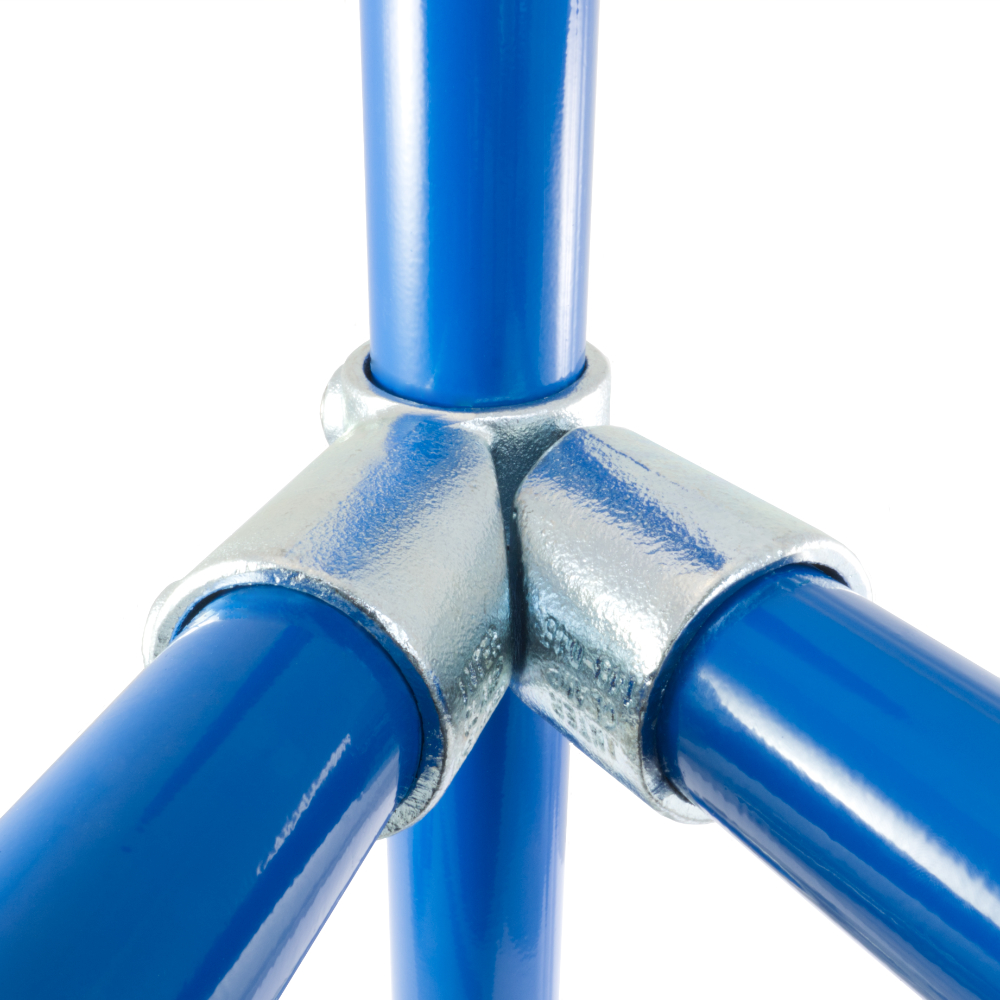

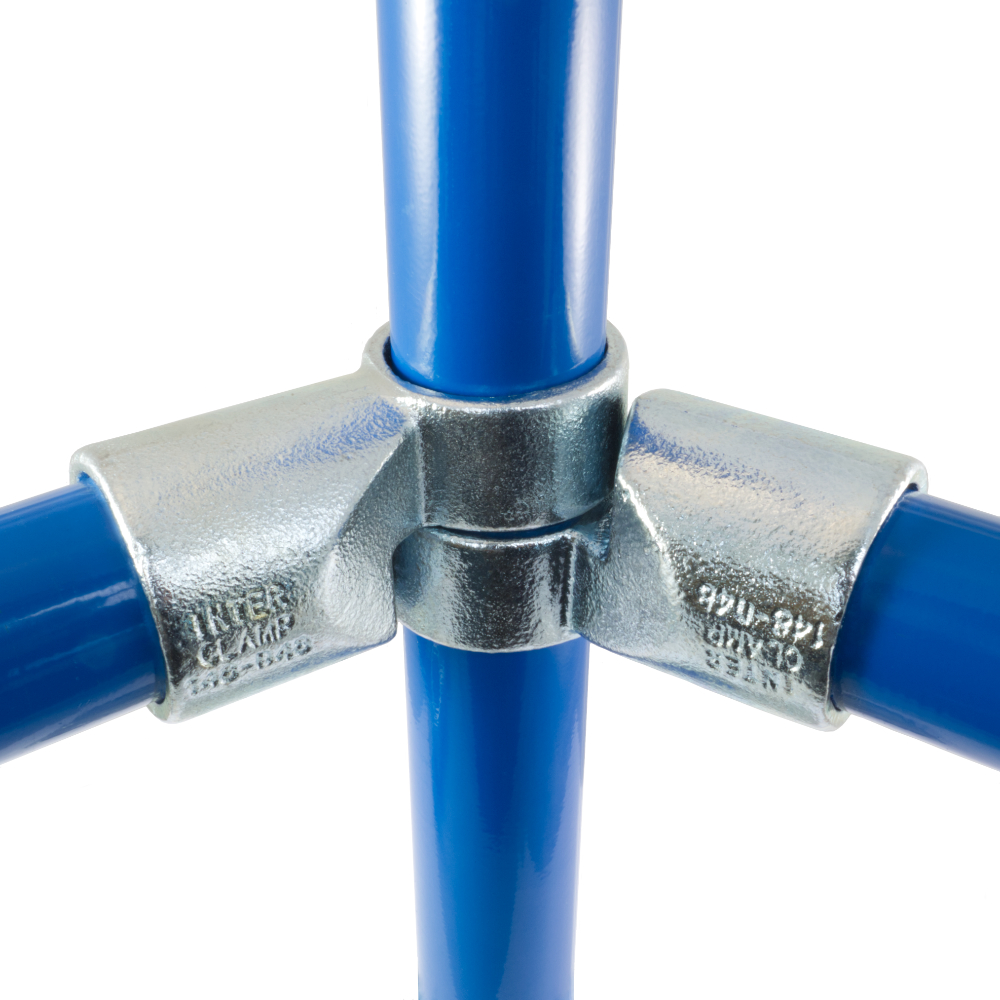

Image shows 2 fittings.

Product Data & Dimensions

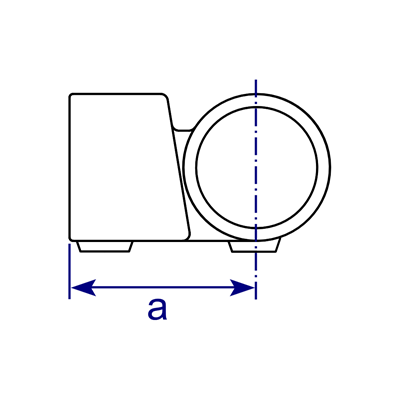

Size a (mm) Weight (kg) Box Qty* Part No
  A27   53   0.19   168   148-A27
  B34   59   0.29   100   148-B34
  C42   73   0.45   72   148-C42
  D48   93   0.66   40   148-D48
  E60   110   1.01   26   148-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
