152 - Slope Base Flange (0° - 11°)

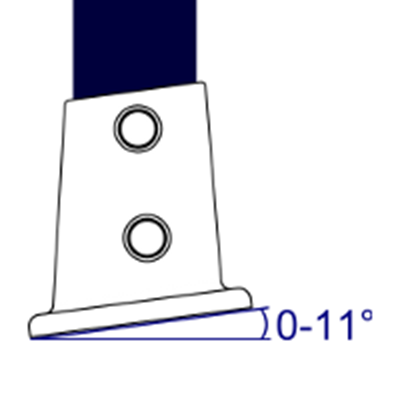

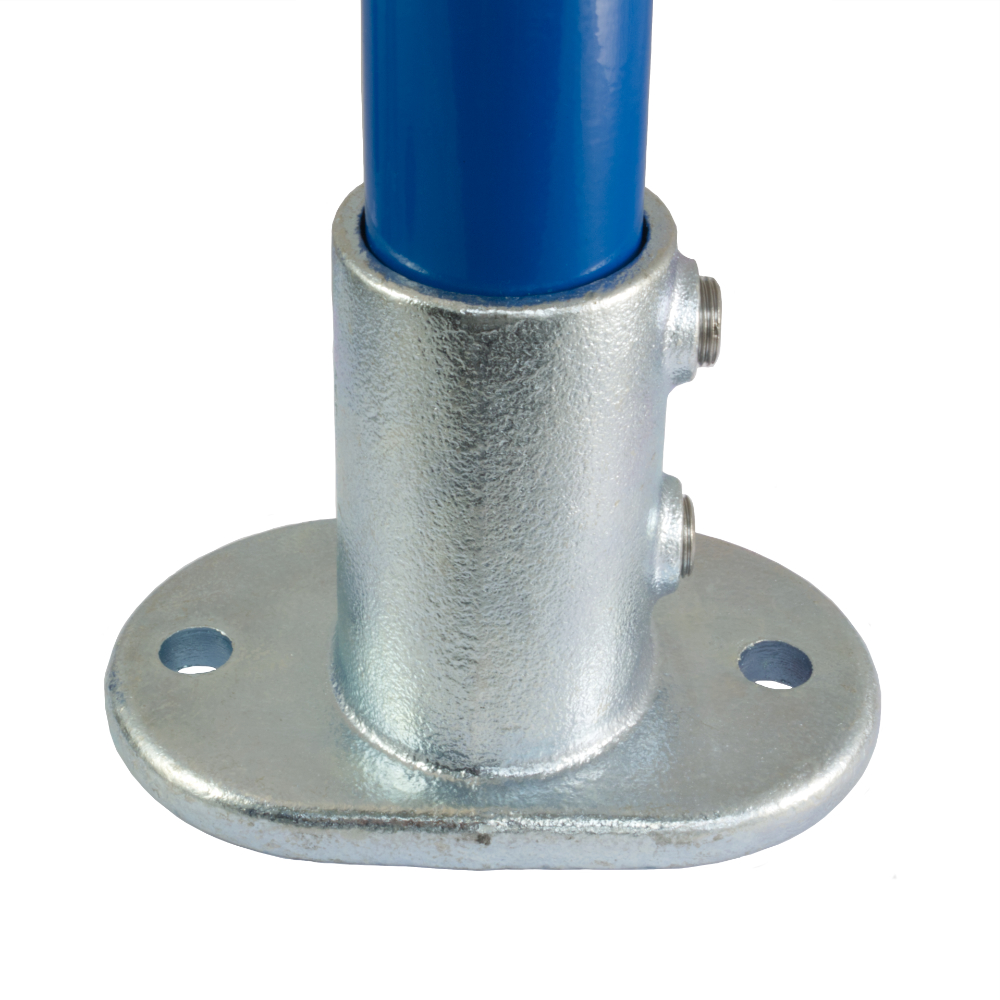

Base flange for sloping sites, adjustable from 0° to 11°, usually used for guardrail and wheelchair ramp uprights. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.

To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.

Product Data & Dimensions

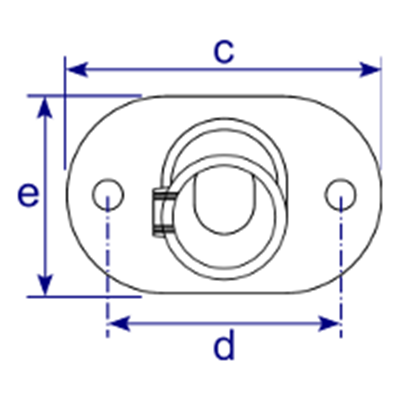

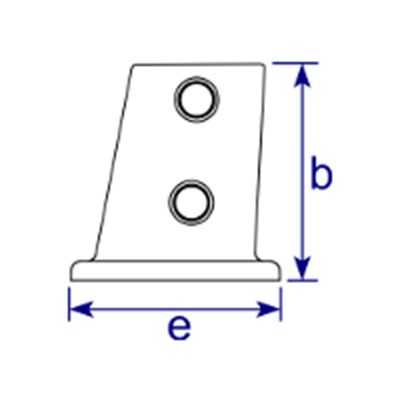

Size b (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (kg) Box Qty* Part No
  B34   90   127   89   80   15   0.92   30   152-B34
  C42   99   141   102   90   15   1.15   25   152-C42
  D48   99   153   113   96   15   1.42   20   152-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
