166 - Adjustable Knuckle

166 - Adjustable Knuckle

A versatile fitting, often used where a horizontal rail is joined to a sloping section. Once the desired angle is obtained, the knuckle is secured with a standard setscrew.

Range Print < Previous Next >

Product Data & Dimensions

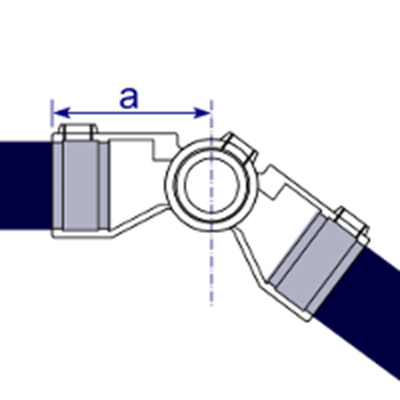

Dimensions Image 1 - 166 - Adjustable Knuckle

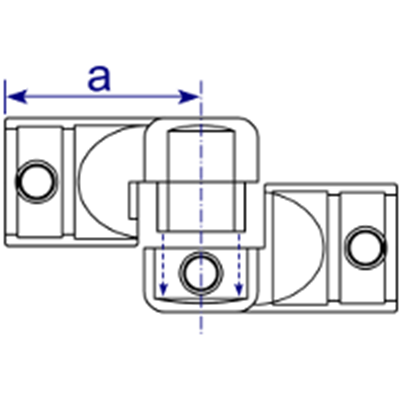

Dimensions Image 2 - 166 - Adjustable Knuckle
Size a (mm) Weight (Kg) Box Qty* GTIN / EAN No
  AA21   -   0.28   50   5060511021609
  B34   78   0.87   42   5060511021616
  C42   88   1.28   28   5060511021623
  D48   93   1.45   23   5060511021630
  E60   110   2.34   12   5060511021647

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
