171 - Double Sided Mesh Panel Clip

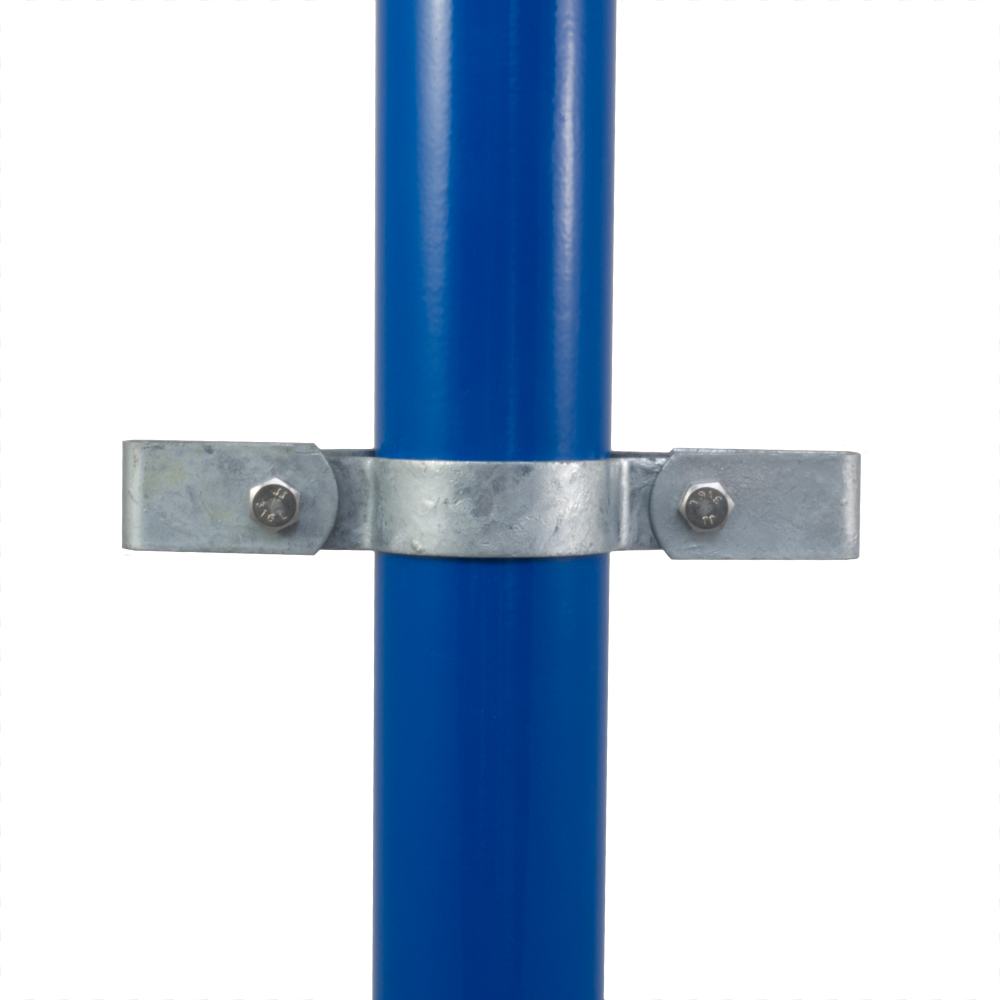

A double mesh panel clip. Typically used for retaining weld mesh panels into guardrail. To correctly retain the weld mesh panel in place using this clip, the mesh should be framed with a 8mm bar. For attaching mesh panels to both sides of tube. Designed to suit 8mm rod.

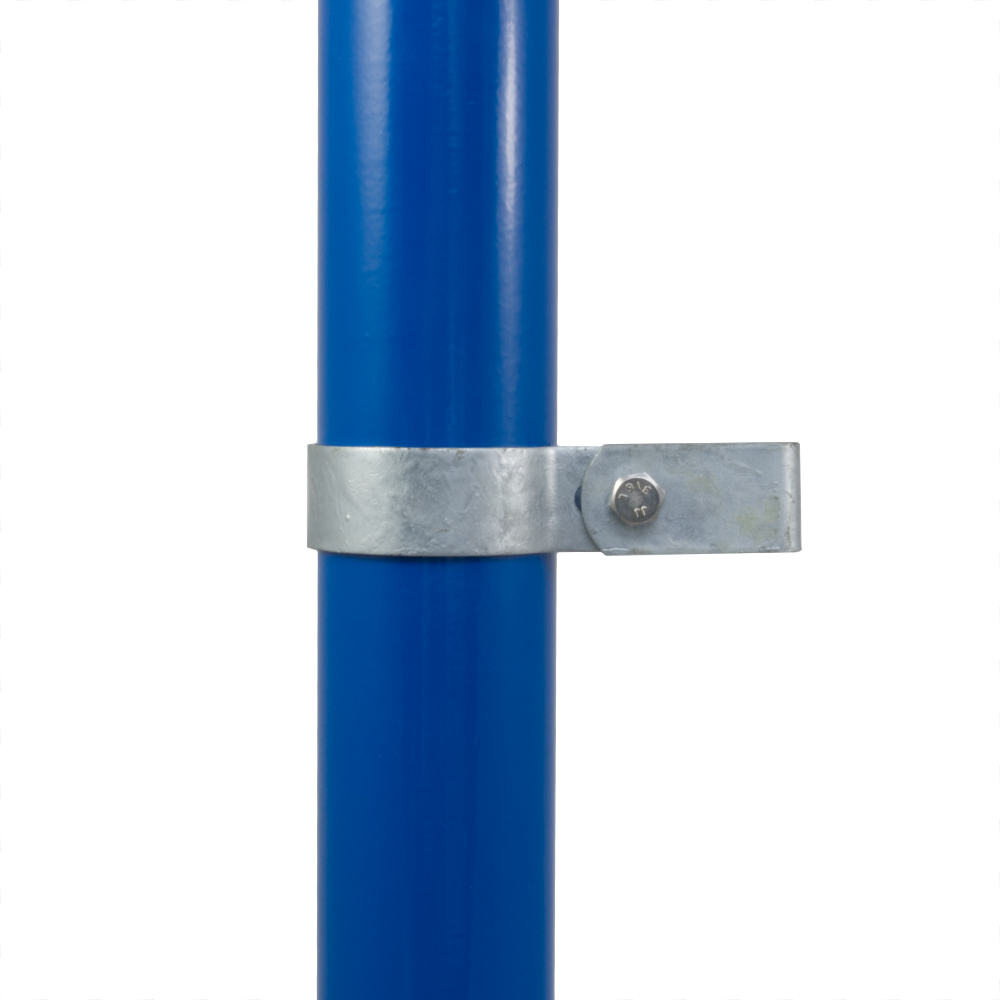

For single-sided clips, please refer to type 170. This fitting may also be used without the small return part to secure certain other types of sheet material to tubes eg. Board. The tube cannot be joined within the fitting.

N.B. This item is manufactured from steel, not malleable iron. Please note that bolts are BZP coated.

Product Data & Dimensions

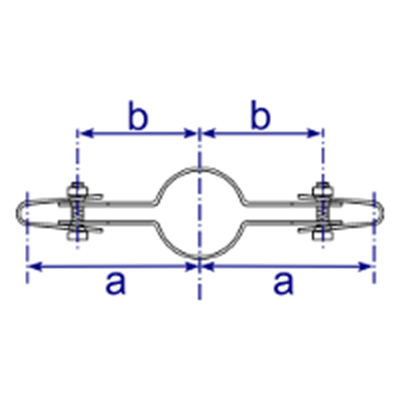

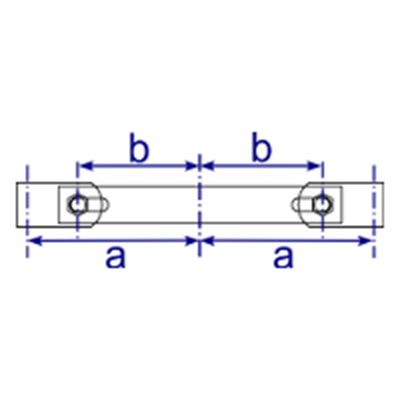

Size a (mm) b (mm) Weight (kg) Box Qty* Part No
  A27   50 - 64   24 - 38   0.11   160   171-A27
  B34   54 - 64   28 - 38   0.11   260   171-B34
  C42   60 - 70   34 - 44   0.11   240   171-C42
  D48   62 - 72   34 - 44   0.12   240   17-D48
  E60   70 - 80   45 - 55   0.14   130   171-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
