191 - Ridge Fitting (27½°)

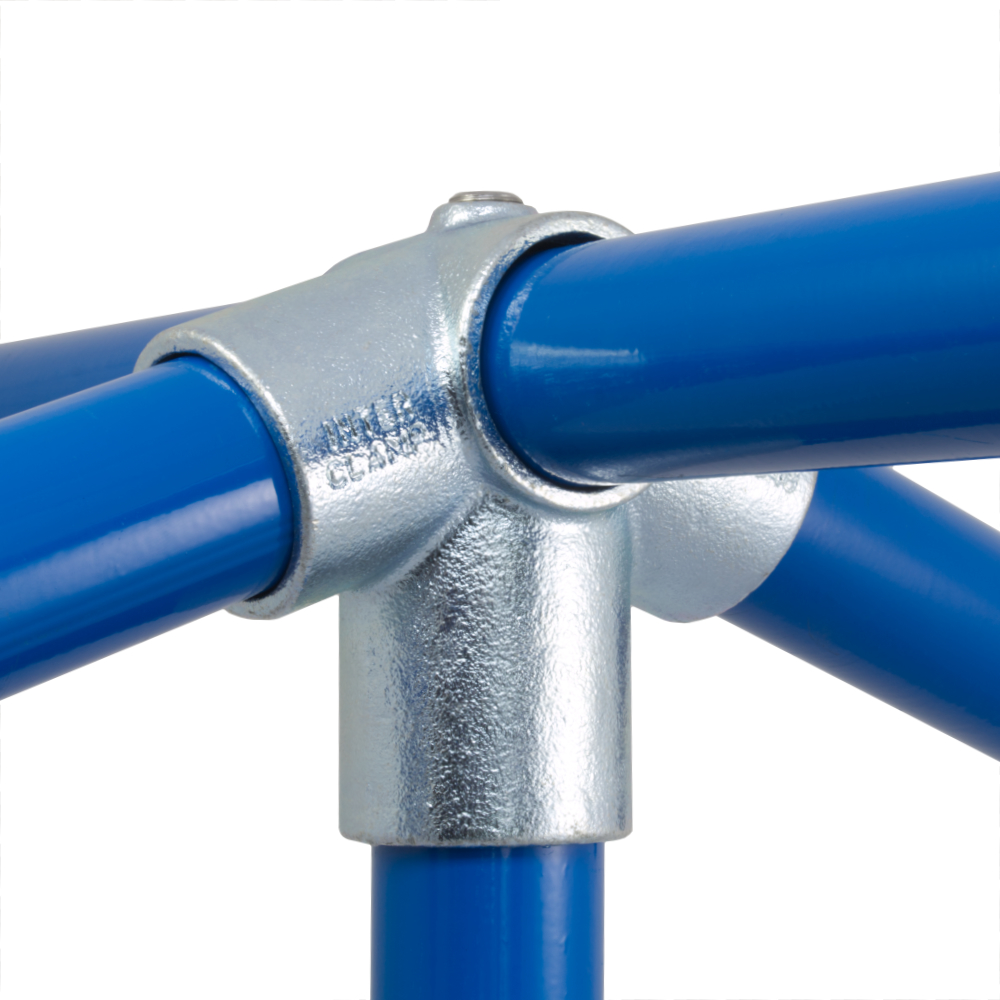

Usually used to form roof structures in conjunction with type 185, with an angle of 27½°. The ridge tube running longitudinally with the roof may be joined within the fitting (there are two setscrews acting on this tube, which are obscured in the photo).
Product Data & Dimensions
Size | a (mm) | b (mm) | Weight (kg) | Box Qty* | Part No |
D48 | 68 | 90 | 1.13 | 12 | 191-D48 |
