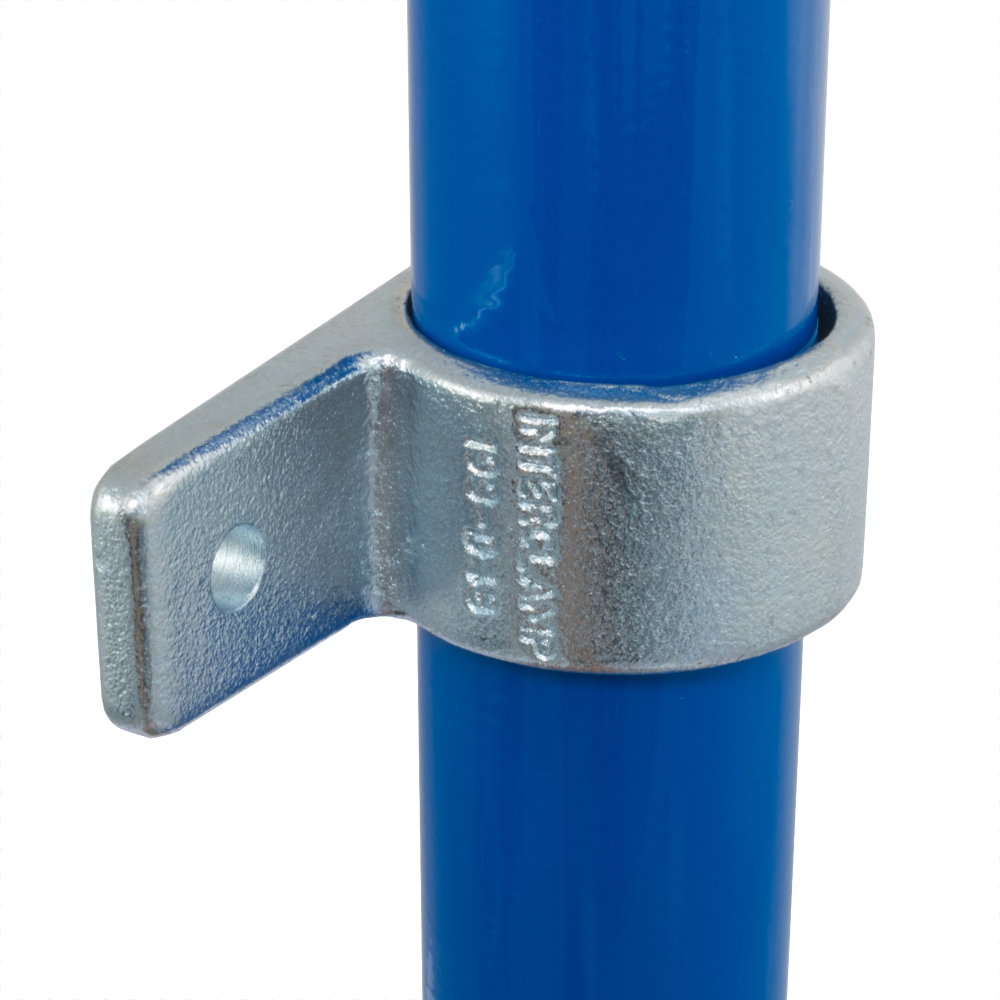

199 - Single-lugged Bracket

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The tube cannot be joined within the fitting.

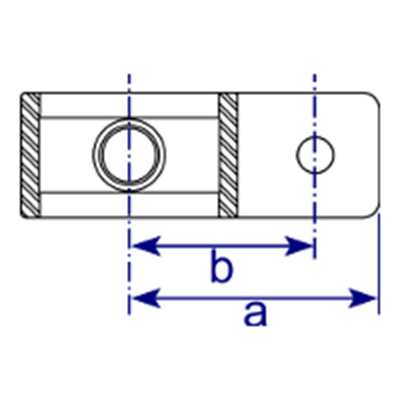

Product Data & Dimensions

Size a (mm) b (mm) Weight (kg) Box Qty* Part No
  B34   60   43   0.24   192   199-B34
  C42   66   48   0.31   144   199-C42
  D48   70   52   0.34   100   199-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
