234 - 4 Hole Heavy Duty Baseplate

The Interclamp 234 is a 4-hole heavy duty base fitting, typically used to secure handrail posts/uprights to the ground on level sites and where applications require higher loadings.

Depending on the required loading Interclamp types 132 and 232 may be considered as alternative options.

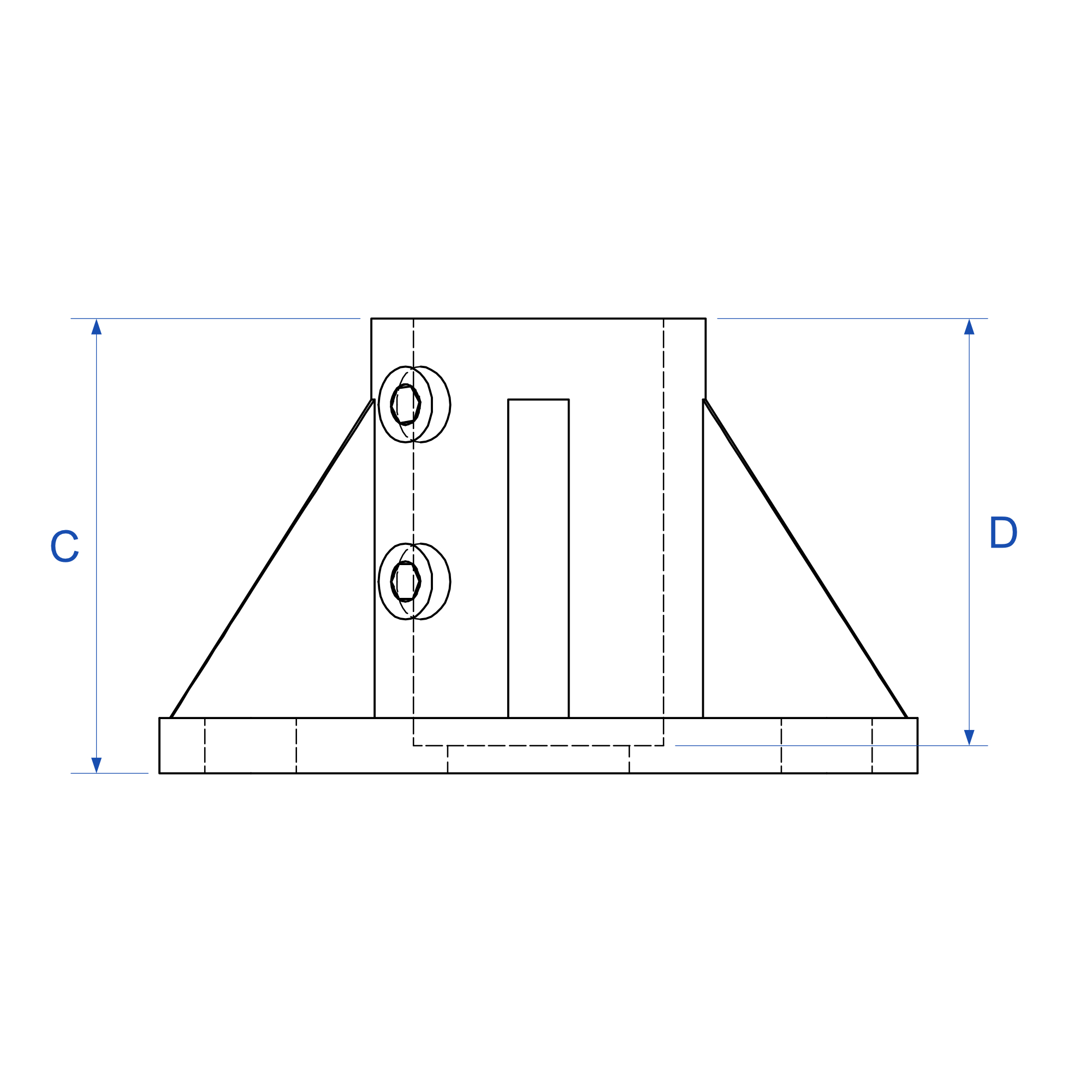

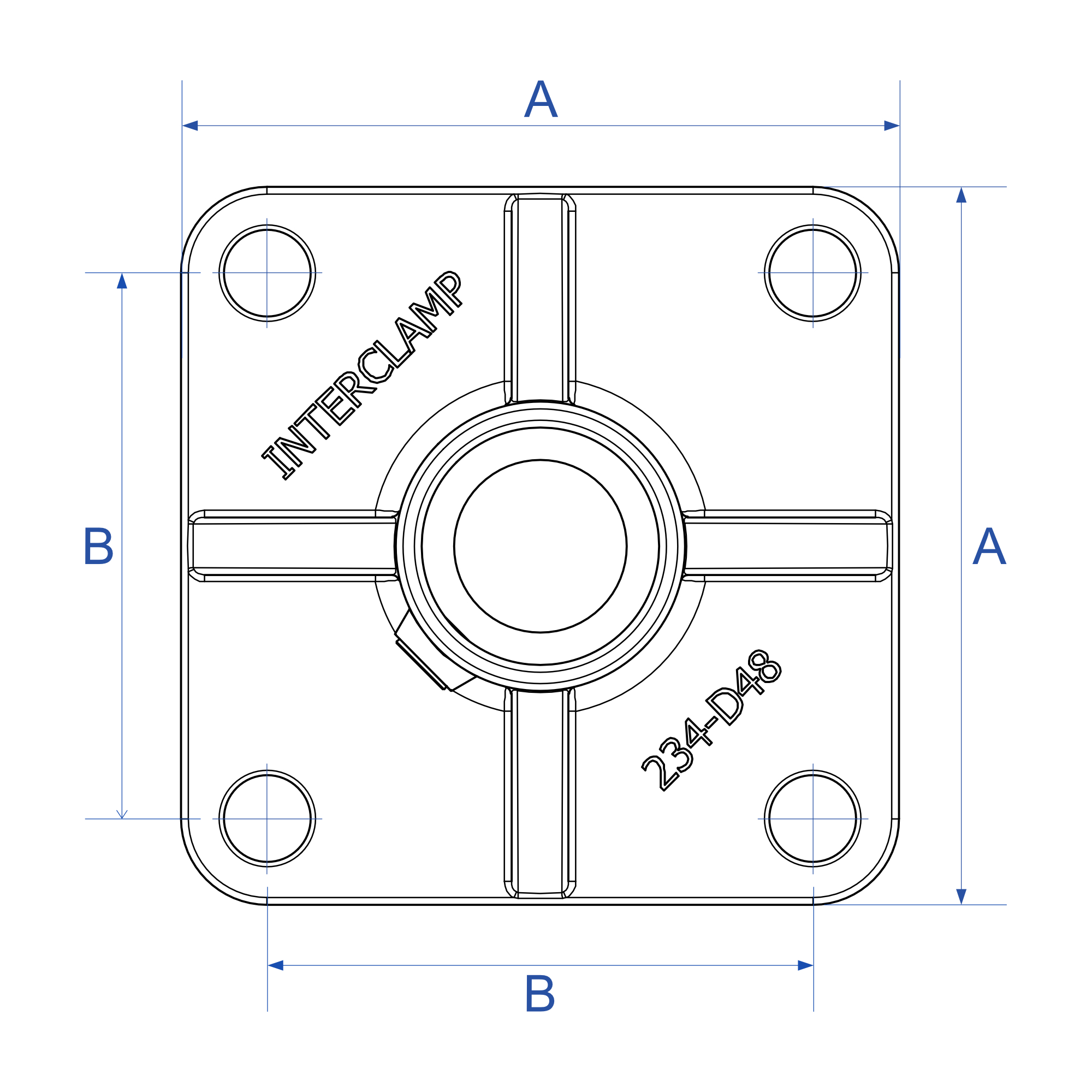

Product Data & Dimensions

Size A (mm) B (mm) C (mm) D (mm) Weight (kg) Box Qty* Part No
  D48   150   114 90 84.5   1.48   13   234-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
