255 - Slope Long Tee (11°-29°)

255 - Slope Long Tee (11°-29°)

Adjustable for slopes from 11° to 29°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp can be used where through tube (sloping in photo) has to be joined within the fitting.Type 253 may often be used as an alternative.

Please also see our Interclamp Assist range of flush fittings to help compliance with the Disability Discrimination Act (DDA) and the Building Regulations Part M:2004.

Range Print < Previous Next >

Product Data & Dimensions

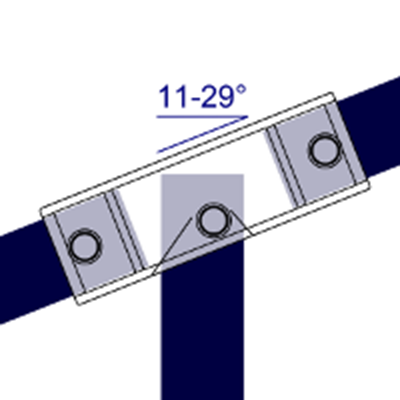

Dimensions Image 1 - 255 - Slope Long Tee (11°-29°)

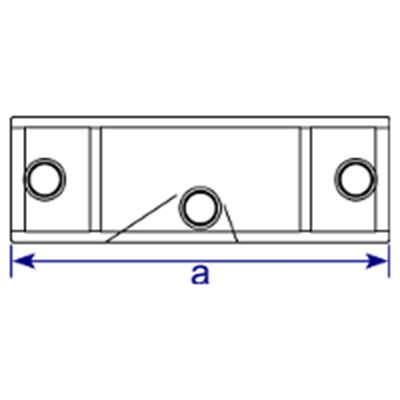

Dimensions Image 2 - 255 - Slope Long Tee (11°-29°)
Dimensions Image 3 - 255 - Slope Long Tee (11°-29°)
Size a (mm) Weight (Kg) Box Qty* GTIN / EAN No
  D48   184   1.11   22   5060511022606

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
