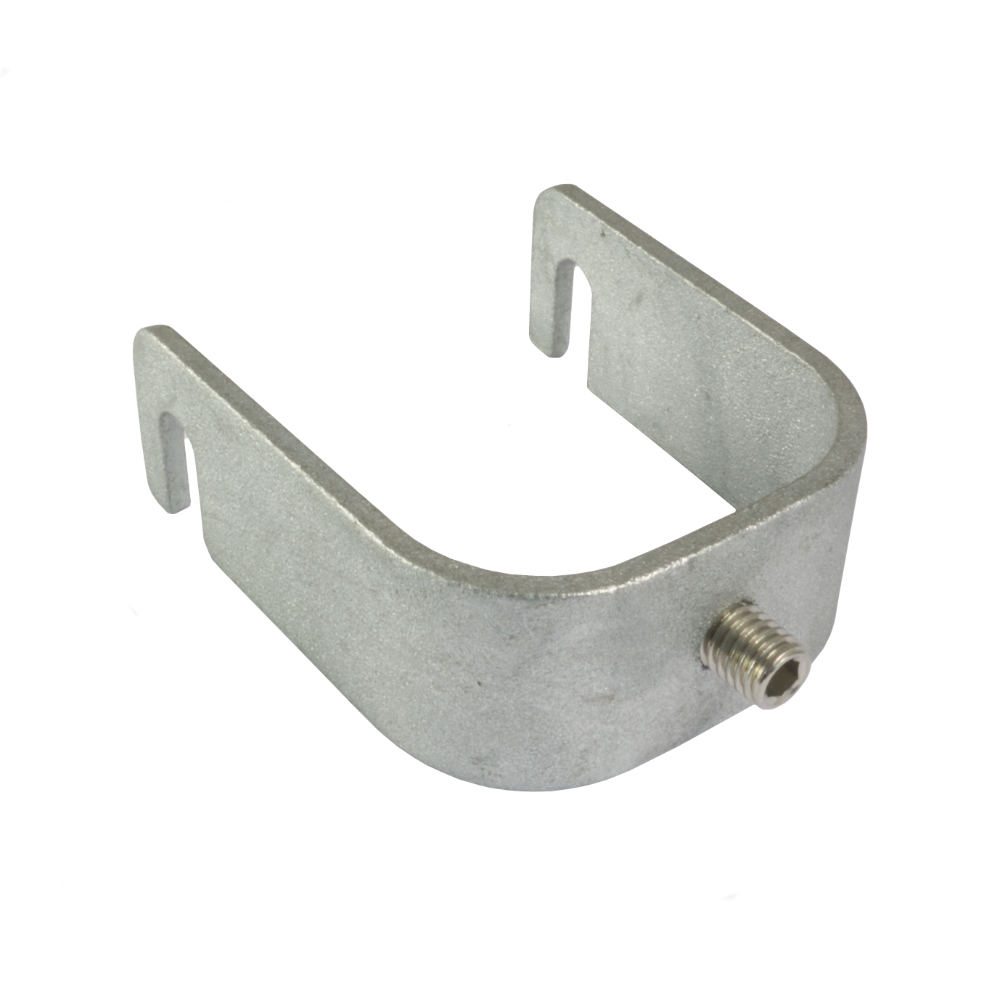

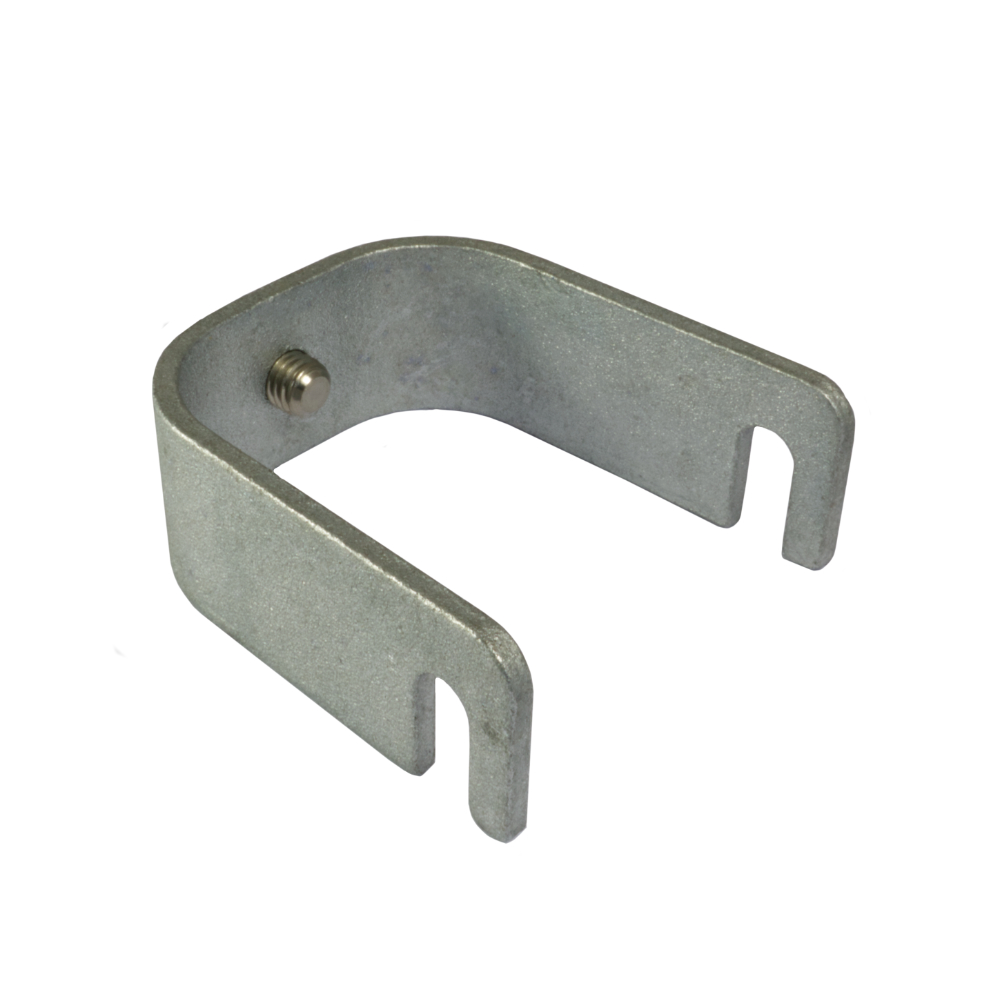

Toe Board Saddle Fitting

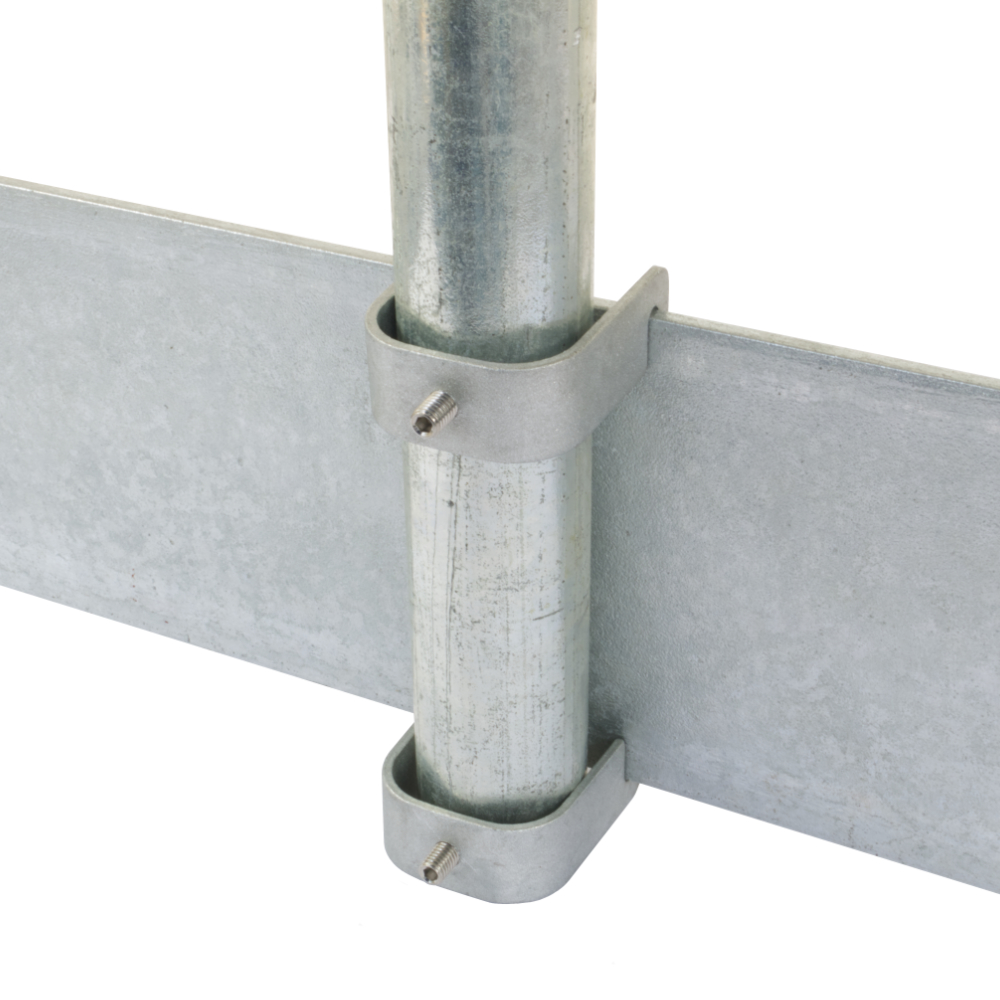

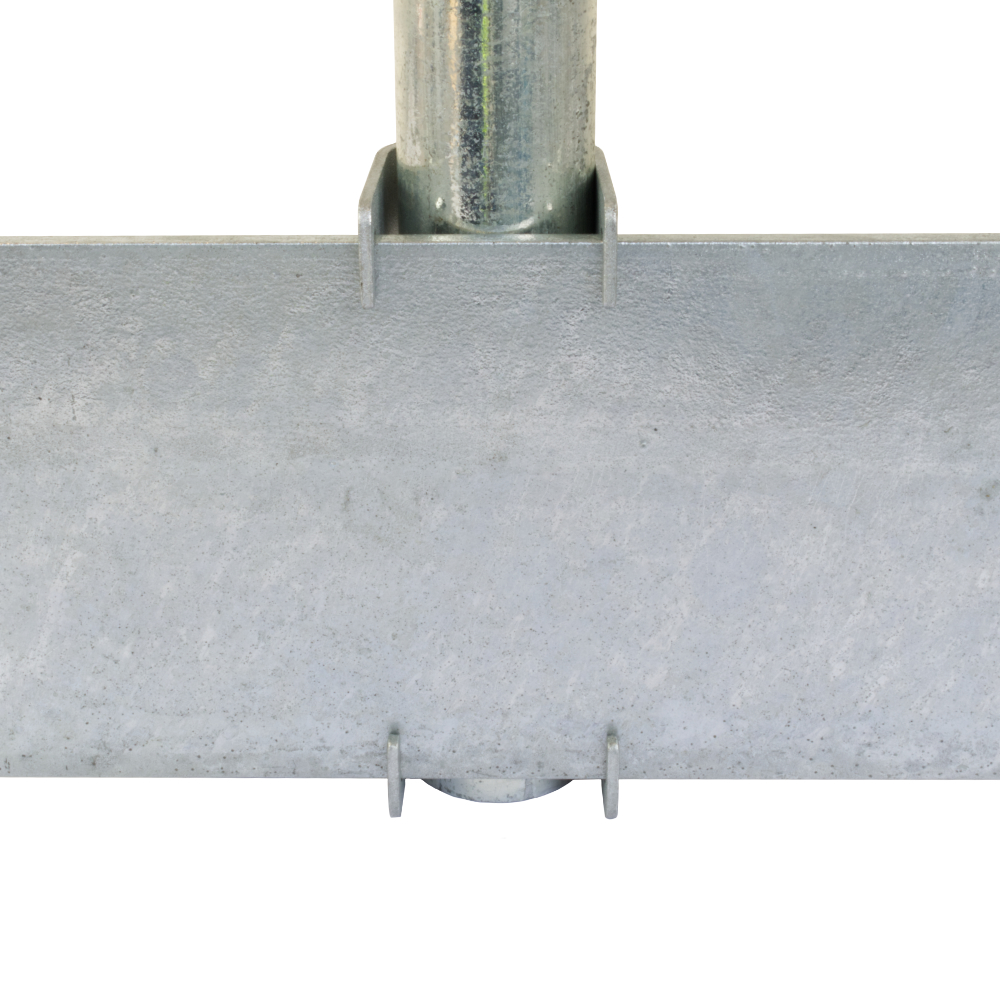

The toe board saddle fitting is used to attach the kick plate / toe board to the handrailing uprights.
Available in two sizes to suit B34 and C42 to D48 handrail posts.
*This item does not work in conjunction with standard bases 132 & 232.

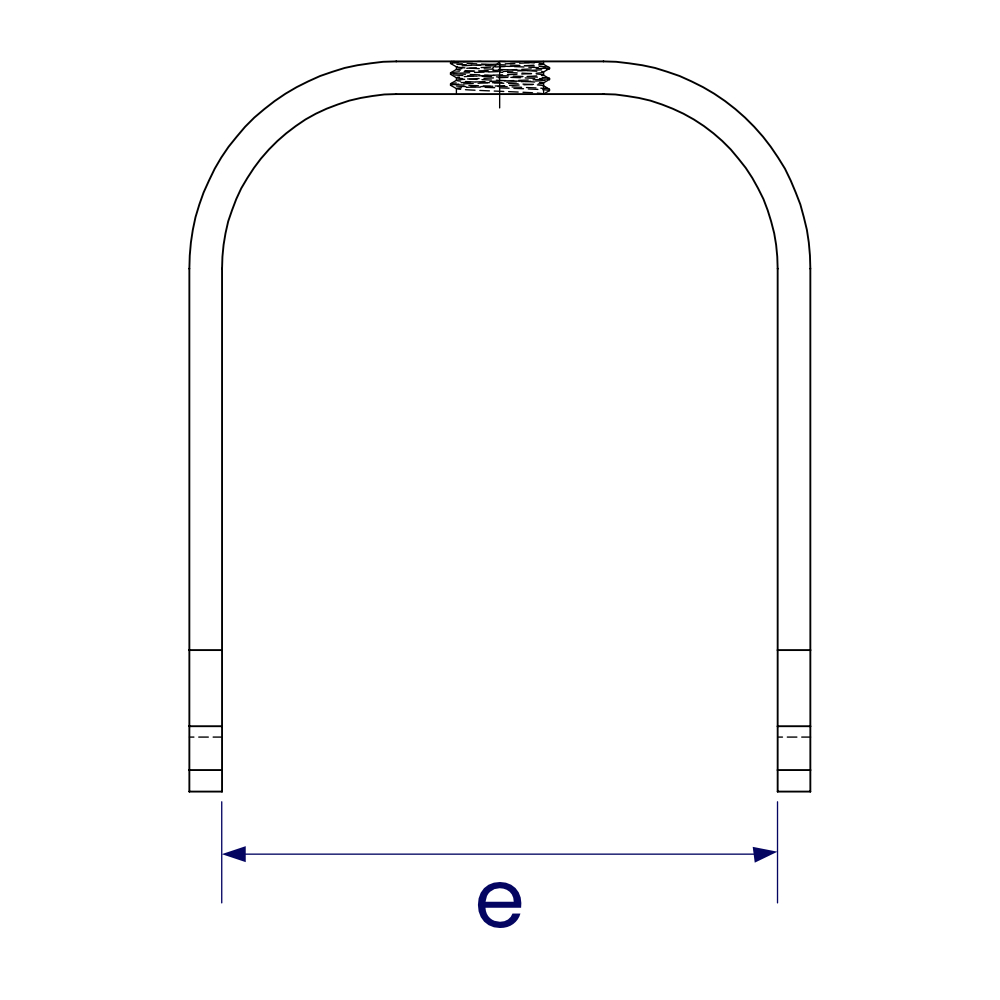

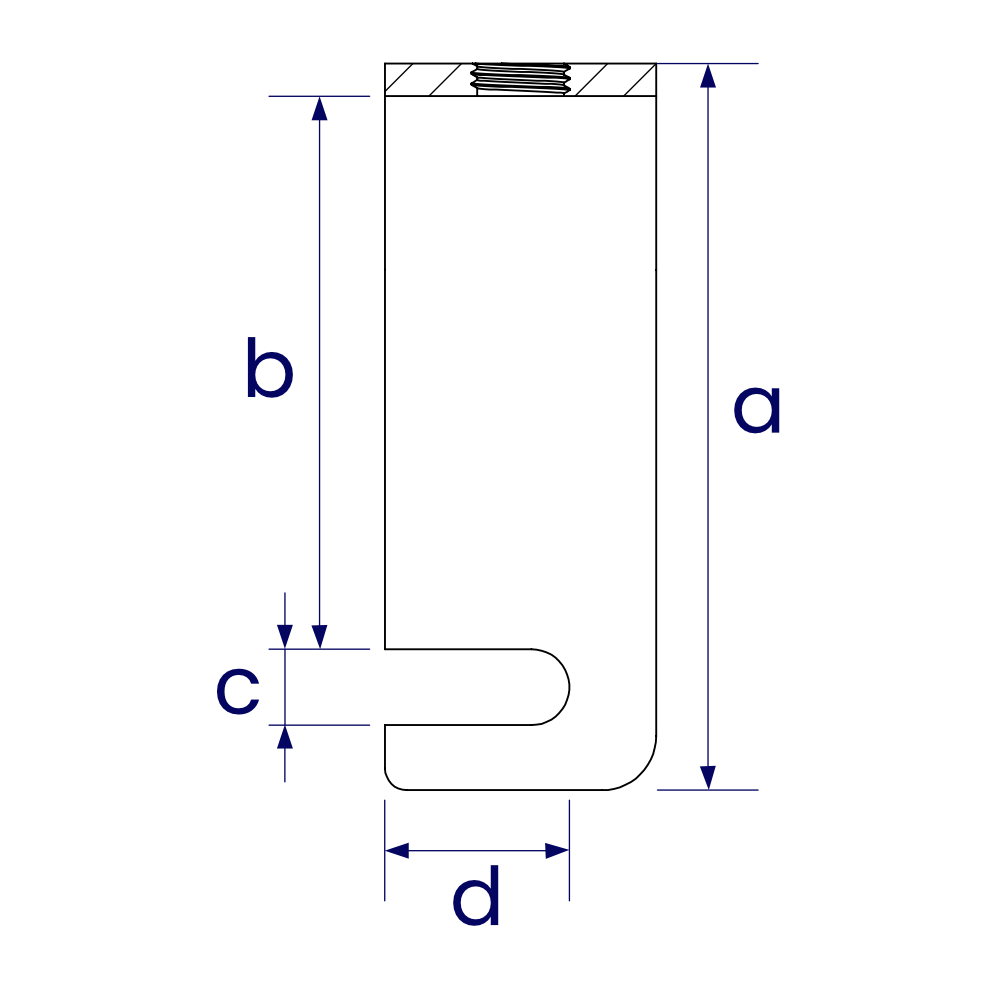

Product Data & Dimensions
| Size | a (mm) | b (mm) | c (mm) |
d (mm) |
e (mm) |
Weight (kg) | Box Qty* | Part No |
| B34 | 52 | 36 | 7 | 17 | 38 | 0.1 | 348B43 | |
| C42-D48 | 67 | 51 | 7 | 17 | 51 | 0.1 | 349C42-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
