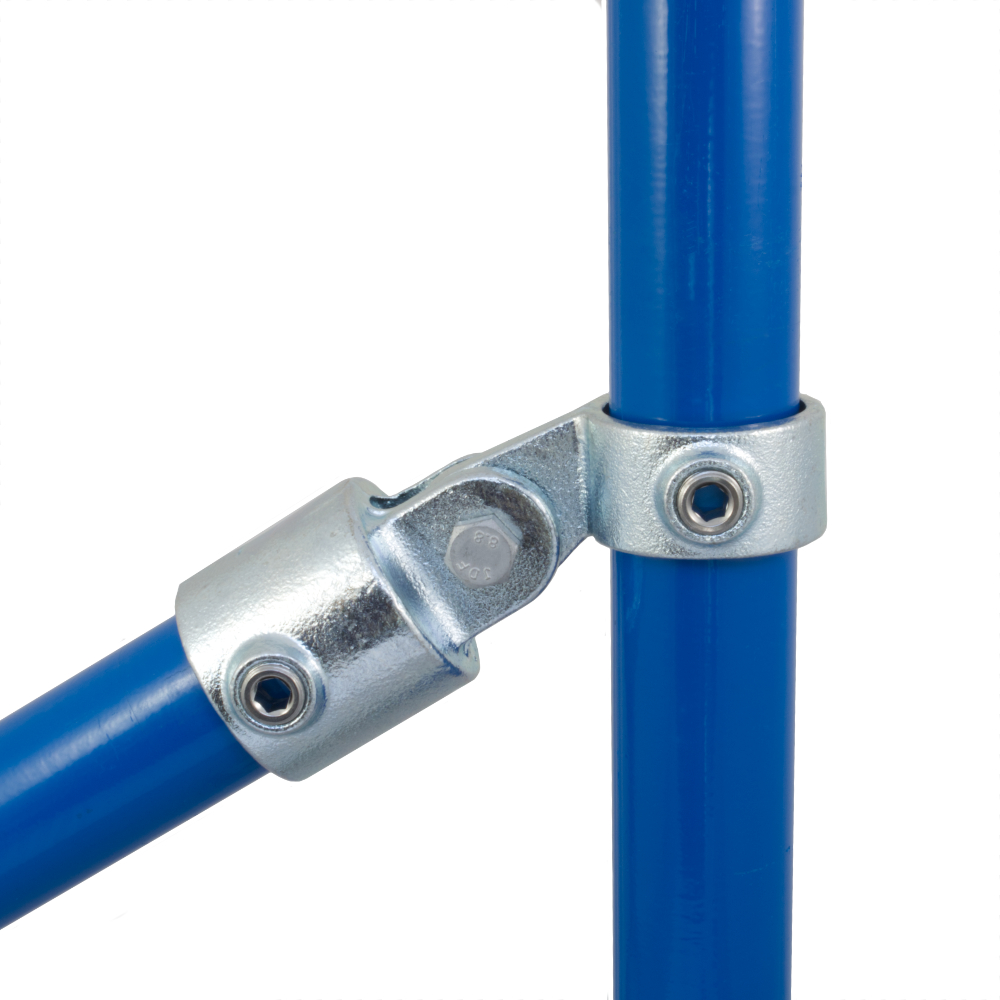

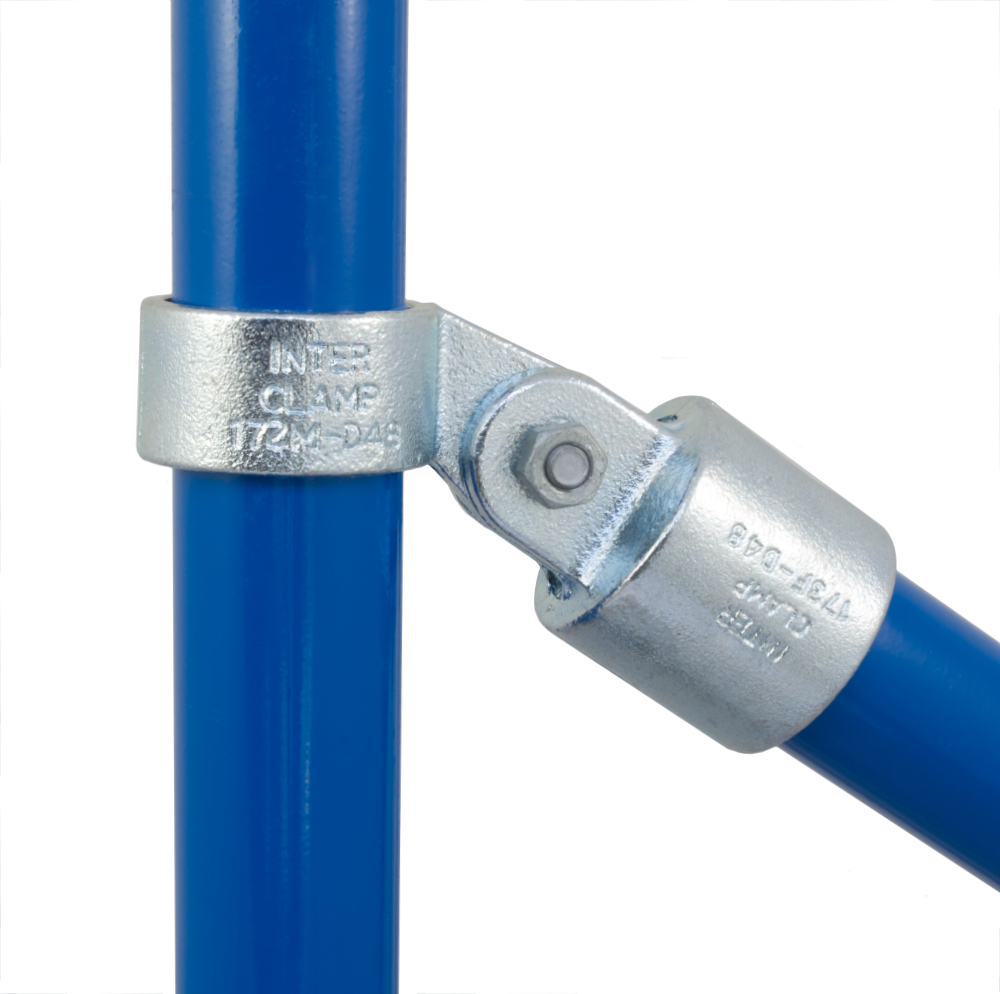

172 - Offset Single Swivel

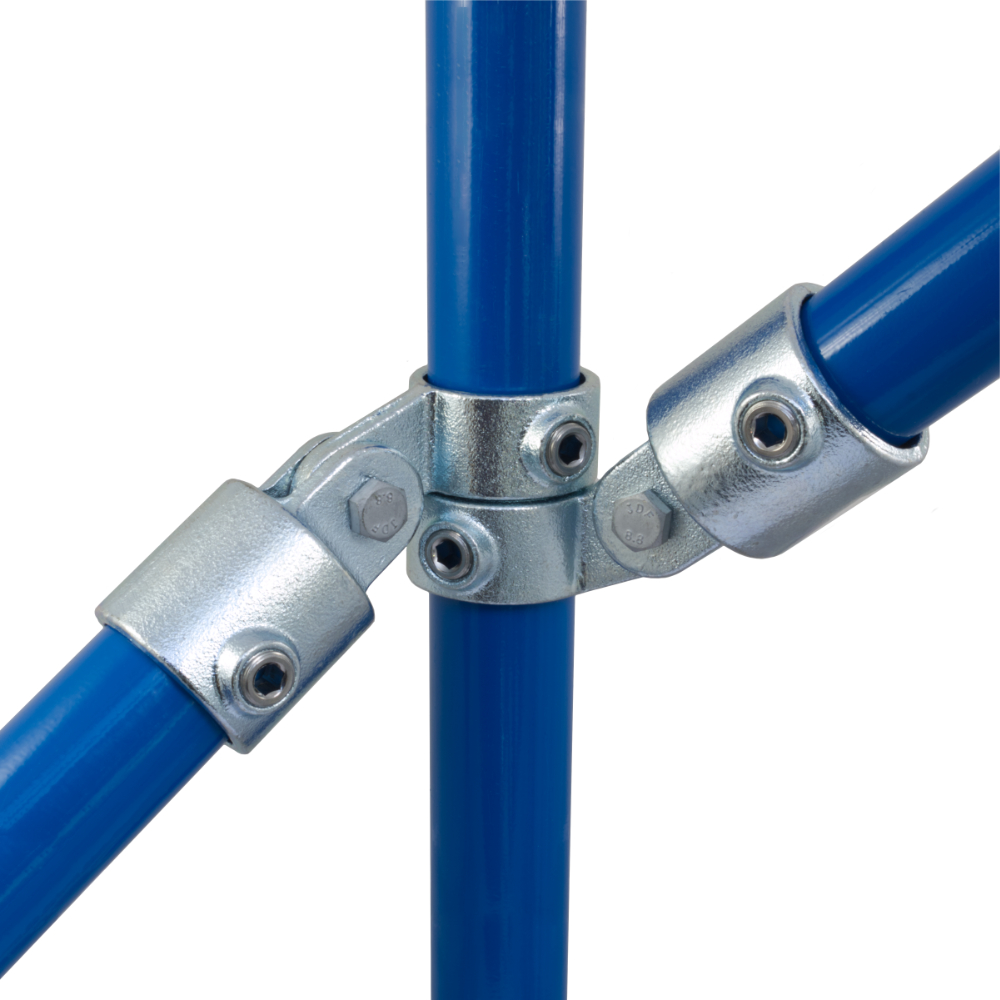

A versatile swivel fitting, useful for awkward applications where angles cannot be accommodated by adjustable angle fittings. The Interclamp 172 is typically used as an alternative to type 168 on ramps and staircases where the change in direction is not 90 degrees.
This fitting is not designed to withstand lateral loading.
Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

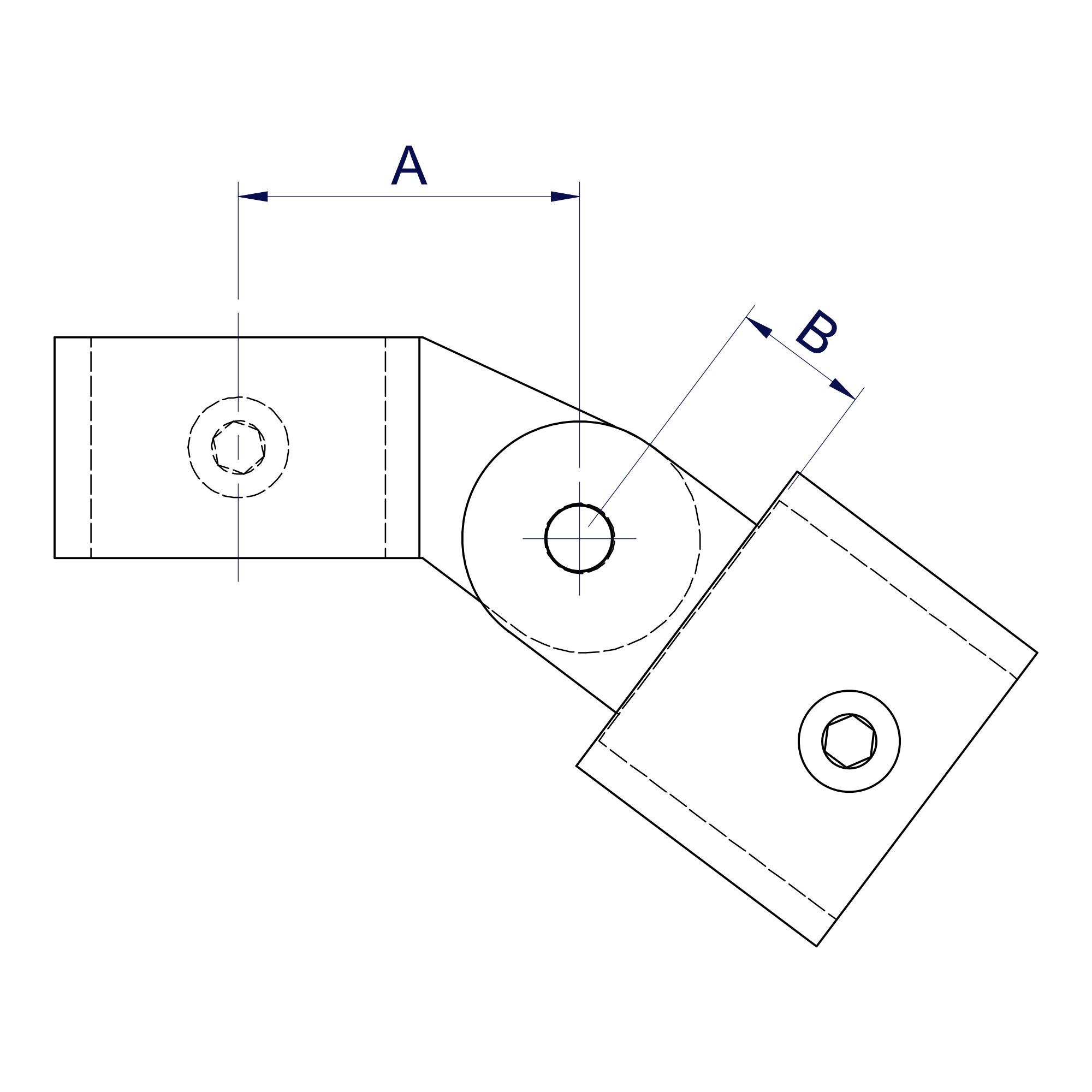

Product Data & Dimensions
| Size | a (mm) | b (mm) | Weight (kg) | Box Qty* | Part No |
| C42 | 51 | 21 | 0.70 | 25 | 172-C42 |
| D48 | 57 | 25 | 0.89 | 25 | 172-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
