170 - Single Sided Mesh Panel Clip

170 - Single Sided Mesh Panel Clip

A single mesh panel clip. Typically used for retaining weld mesh panels into guardrail. To correctly retain the weld mesh panel in place using this clip, the mesh should be framed with a 8mm bar. For attaching mesh panels to one side of tube.

For double-sided clips, please refer to type 171. This fitting may also be used without the small return part to secure certain other types of sheet material to tubes eg. Board. The tube cannot be joined within the fitting.

N.B. This item is manufactured from steel, not malleable iron.
Please note that bolts are BZP coated.

Designed to suit 8mm rod.

Buy Online Range Print < Previous Next >

Product Data & Dimensions

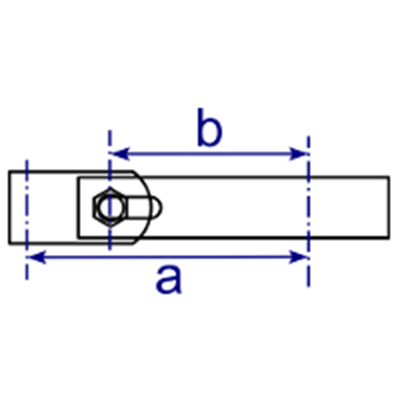

Dimensions Image 1 - 170 - Single Sided Mesh Panel Clip

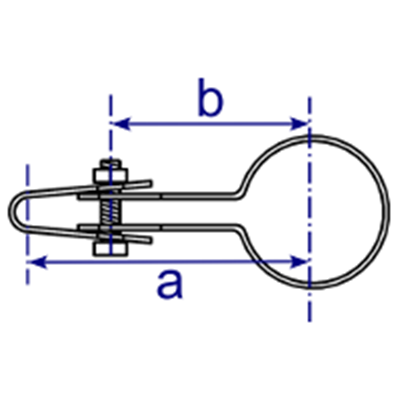

Dimensions Image 2 - 170 - Single Sided Mesh Panel Clip
Size a (mm) b (mm) Weight (kg) Box Qty*
  A27   50 - 64   23 - 38   0.06   250
  B34   54 - 64   28 - 38   0.08   250
  C42   60 - 70   34 - 44   0.08   240
  D48   62 - 72   34 - 44   0.08   200
  E60   70 - 80   45 - 55   0.08   150

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
